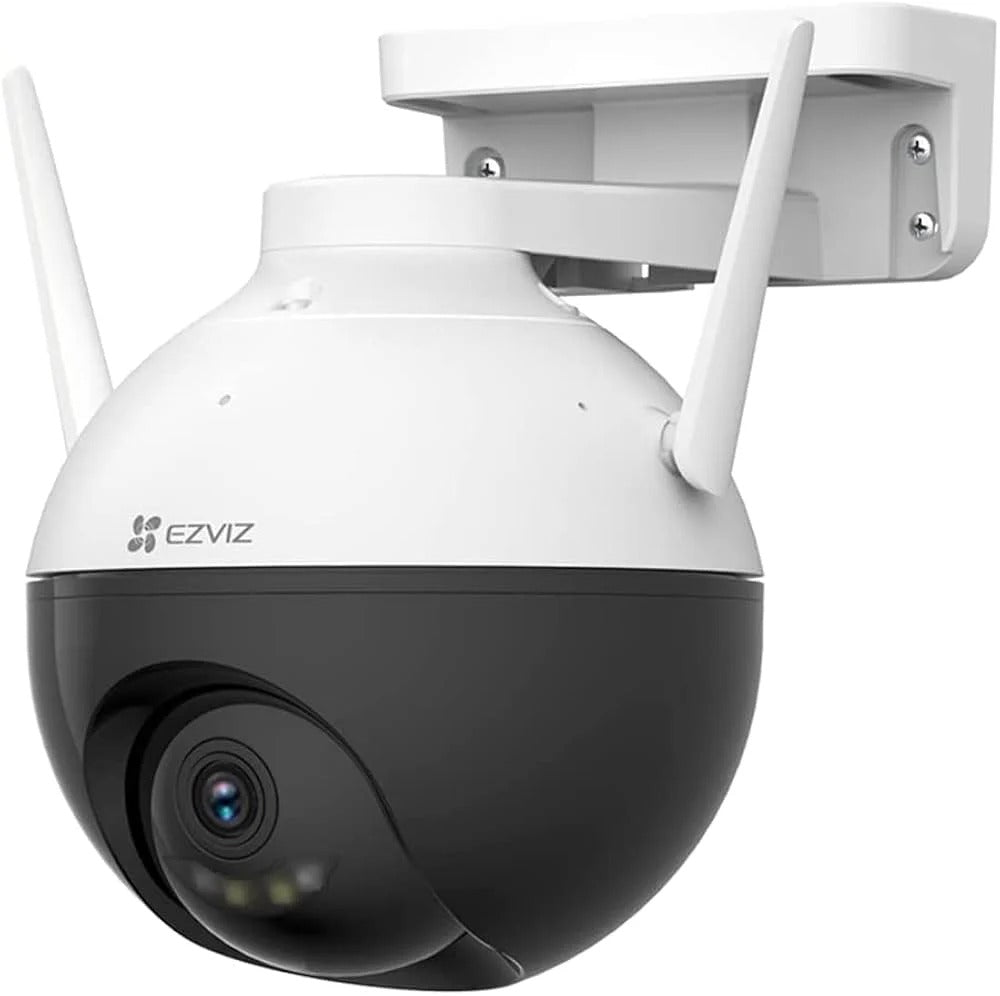

The EZVIZ C8W 2K+ Pan & Tilt Wi-Fi Camera offers an all-encompassing surveillance solution, delivering ultra-clear 2K+ resolution and expansive 360-degree panoramic coverage. Equipped with AI-powered human shape detection, color night vision, two-way communication, and active defense mechanisms, the C8W ensures your property is monitored with precision and clarity, day and night.

What's Included in the Box

• EZVIZ C8W Camera

• 1.5-Meter Power Adapter

• Screw Kit

• Waterproof Kit

• Drill Template

• Regulatory Information

• Quick Start Guide

Main Features

• Ultra-Clear 2K+ Resolution: Capture detailed and vivid images for superior surveillance quality.

• 360° Panoramic Coverage: Pan 352° and tilt 95° to monitor wide areas with minimal blind spots.

• Color Night Vision: Two built-in spotlights provide full-color night vision, enhancing visibility in low-light conditions.

• AI-Powered Human Shape Detection: Intelligently distinguishes human shapes from other objects, reducing false alerts.

• Two-Way Talk: Communicate directly through the camera using the EZVIZ App, facilitating remote interactions.

• Active Defense: Upon detecting intruders, the camera activates a loud siren and flashes spotlights to deter unauthorized access.

• Flexible Storage Options: Supports microSD cards up to 256 GB and offers encrypted cloud storage for secure video recording.

Detailed Specifications

• Model: CS-C8W (4MP,W1)

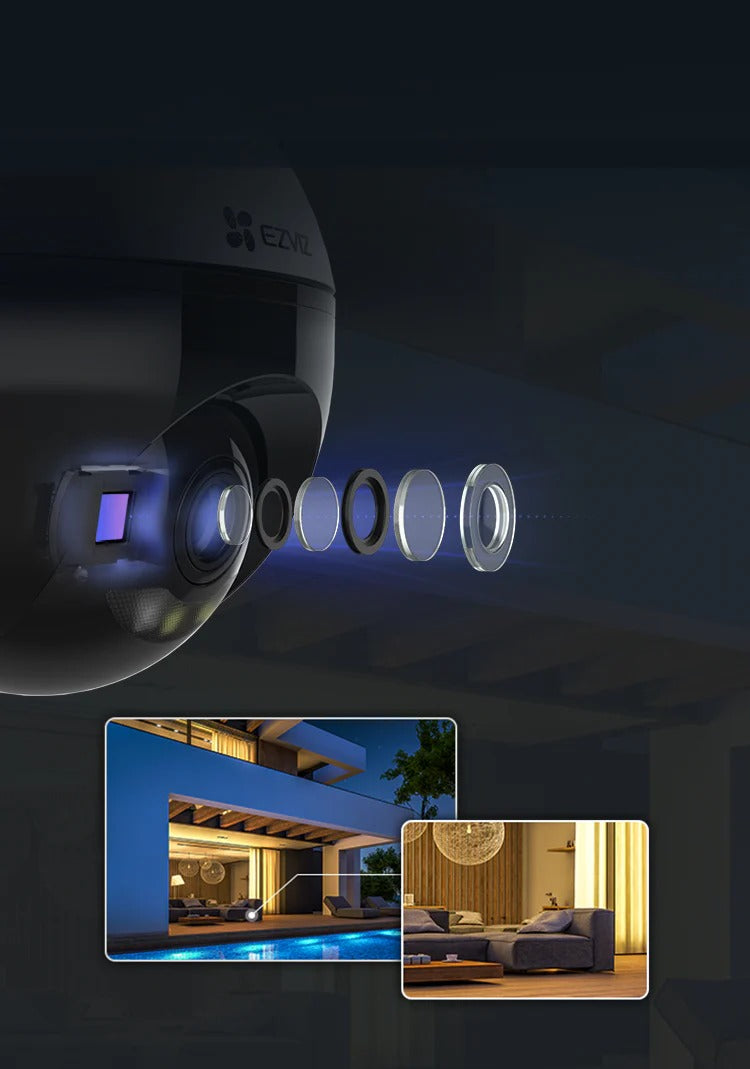

• Image Sensor: 1/2.7” Progressive Scan CMOS

• Shutter Speed: Self-adaptive shutter

• Lens Options:

  • 4mm @ F1.6, with an 87° horizontal and 105° diagonal field of view

  • 6mm @ F1.6, with a 55° horizontal and 66° diagonal field of view

• Pan & Tilt Range: Pan: 352°, Tilt: 95°

• Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR

• Day & Night: IR-cut filter with auto-switching

• DNR: 3D DNR

• WDR: Digital WDR

• BLC: Supports

• Night Vision Distance: Up to 30 meters (98 feet) in black & white mode

• Max. Resolution: 2560 × 1440

• Frame Rate: Up to 30 fps, self-adaptive during network transmission

• Video Compression: H.265 / H.264

• H.265 Type: Main Profile

• Video Bit Rate: Adaptive bit rate with Quad HD, Full HD, Hi-Def, and Standard options

• Audio Bit Rate: Self-Adaptive

• Max. Bitrate: 2Mbps

• Wi-Fi Standard: IEEE802.11b/g/n, 2.4 GHz frequency range

• Wi-Fi Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

• Operating Conditions: -30°C to 60°C (-22°F to 140°F); humidity 95% or less (non-condensing)

• IP Grade: Weatherproof design

• Power Supply: DC 12V / 1A

• Power Consumption: Max. 6W

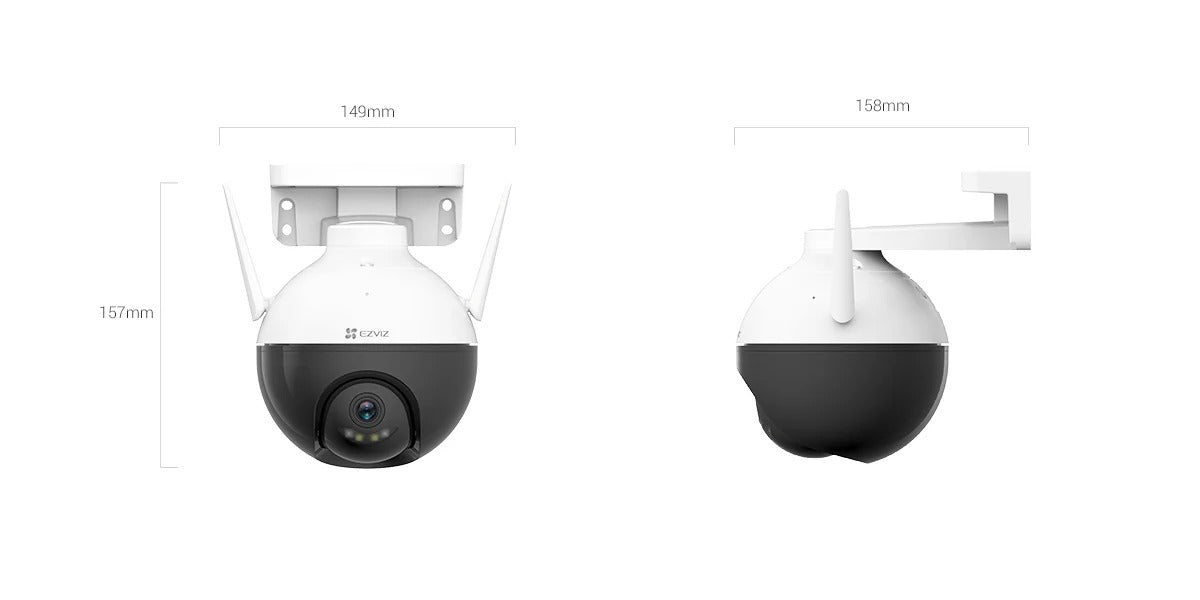

• Dimensions: 158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch)

• Net Weight: 510 g (17.99 oz)

Warranty Information

The EZVIZ C8W comes with a limited warranty. For detailed warranty information and support, please refer to the official EZVIZ website or contact customer service.

Brand Description

Established in 2013, EZVIZ is a global smart home security brand dedicated to creating a safe, convenient, and smart life for users through its innovative devices and cloud-based platform.

SKU: CS-C8W (4MP,W1)

Practical Use Scenarios

• Front Yard Monitoring: Keep an eye on visitors, deliveries, and any unusual activity at your front entrance.

• Backyard Surveillance: Monitor backyard activities, ensuring children's safety and detecting any intrusions.

• Garage or Driveway Security: Oversee vehicles and detect unauthorized access attempts.

• Small Business Premises: Secure business entrances, parking lots, and outdoor assets with comprehensive coverage.

Datasheets or Downloadable Resources

Datasheet

Excellence for the Australian and New Zealand Market

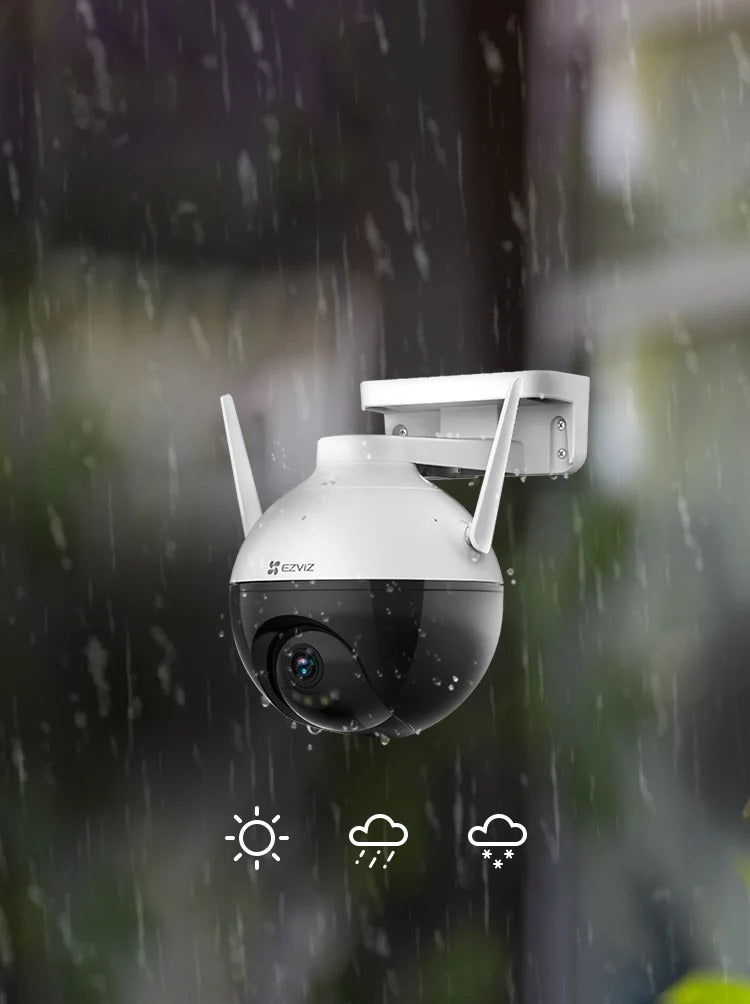

The EZVIZ C8W 2K+ Pan & Tilt Wi-Fi Camera is expertly engineered to meet the expectations of customers in Australia and New Zealand. Its weatherproof design ensures reliable operation in the region’s diverse climates, from hot, dry summers to cold, wet winters. This product adheres to applicable regional compliance standards and is sourced exclusively through authorized brand representatives to ensure authenticity and local support.

All warranty claims and after-sales service for the EZVIZ C8W are handled directly through the brand’s official customer service channels, providing peace of mind and streamlined assistance. With localized compatibility and enhanced safety features, the C8W is a dependable choice for comprehensive outdoor surveillance across homes and businesses in both Australia and New Zealand.
