Specification
Camera
-
- Image Sensor – 3K CMOS
- Max. Resolution – 2960 (H) × 1665 (V)
- Min. Illumination – 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time – PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day ＆ Night – ICR
- Angle Adjustment – Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
- Signal System – PAL/NTSC
Lens
-
- Lens Type – 2.8 mm and 3.6 mm fixed focal lens
- Focal Length ＆ FOV
- 2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°
- 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
- Lens Mount – M12
Illuminator
-
- Supplement Light Type – White Light,IR
- Supplement Light Range
- IR : up to 40 m
- White Light : up to 20 m
-
- Image Settings – Brightness, Sharpness, Smart IR
- Frame Rate
- TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
- AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
- CVI: 4 MP @25 fps/30 fps
- CVBS: PAL/NTSC
- Day/Night Mode – Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR) – Digital WDR
- Image Enhancement – DWDR/BLC/HLC/Global
- White Balance – Auto/Manual
- AGC – Yes
Interface
-
- Video Output – Switchable TVI/AHD/CVI/CVBS
General
-
- Material
- Body: metal
- Enclosure: metal
- Dimension – Ø 127.9 mm × 97.8 mm (Ø 5.04″ × 3.85″)
- Weight – Approx. 476 g (0.75 lb.)
- Operating Condition – -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
- Communication – HIKVISION-C
- Language – English
- Power Supply – 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
- Consumption – Max. 3.3 W
- Material
Approval
-
- Protection – IP66
Available Model
-
- THC-T257-LMS(2.8mm)
- THC-T257-LMS(3.6mm)

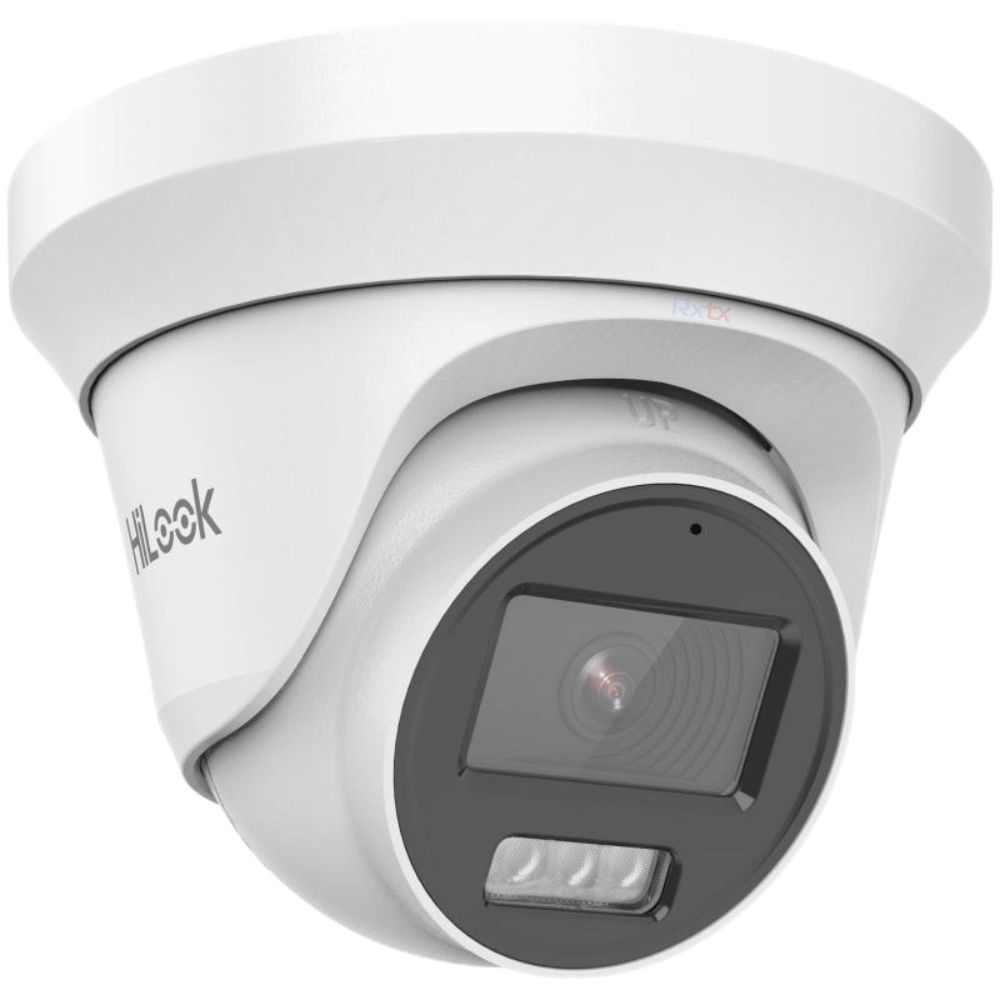

HiLook THC-T257-LMS 3K Dual Light Audio Fixed Turret Camera-Isometric View

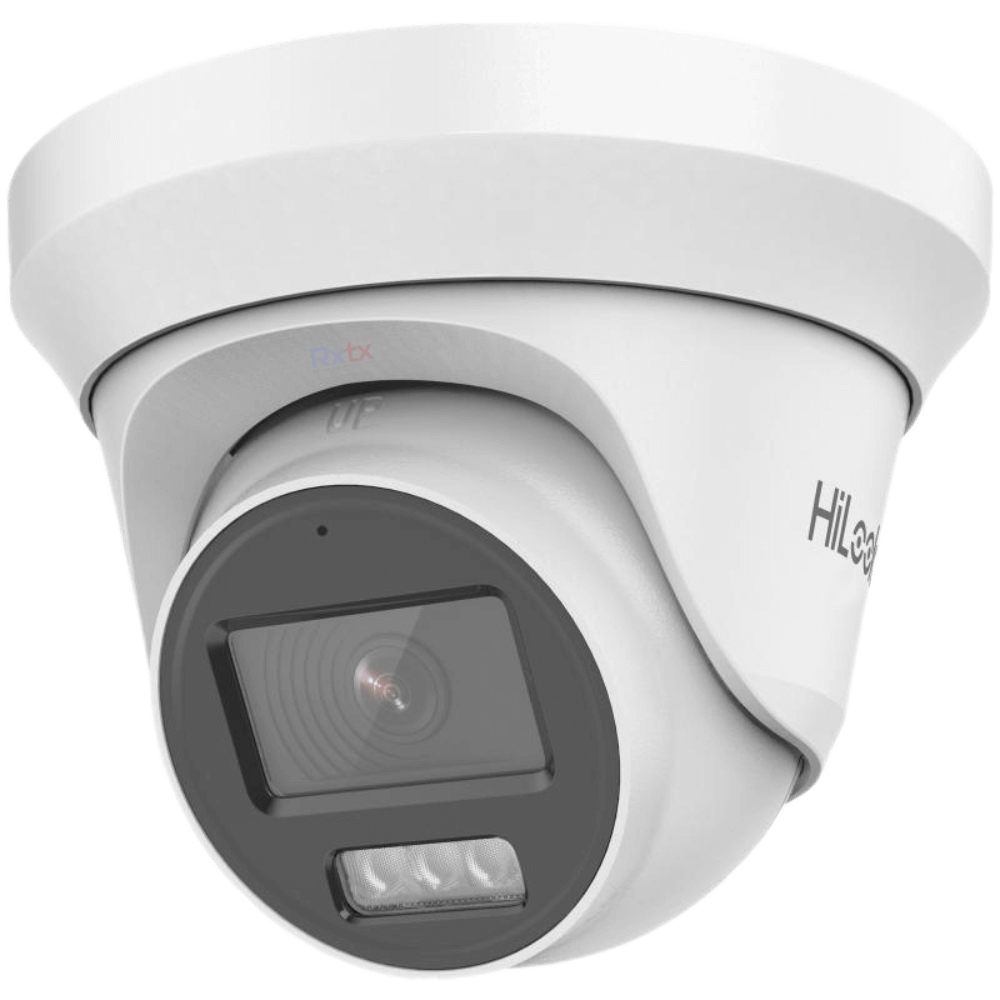

HiLook THC-T257-LMS 3K Dual Light Audio Fixed Turret Camera

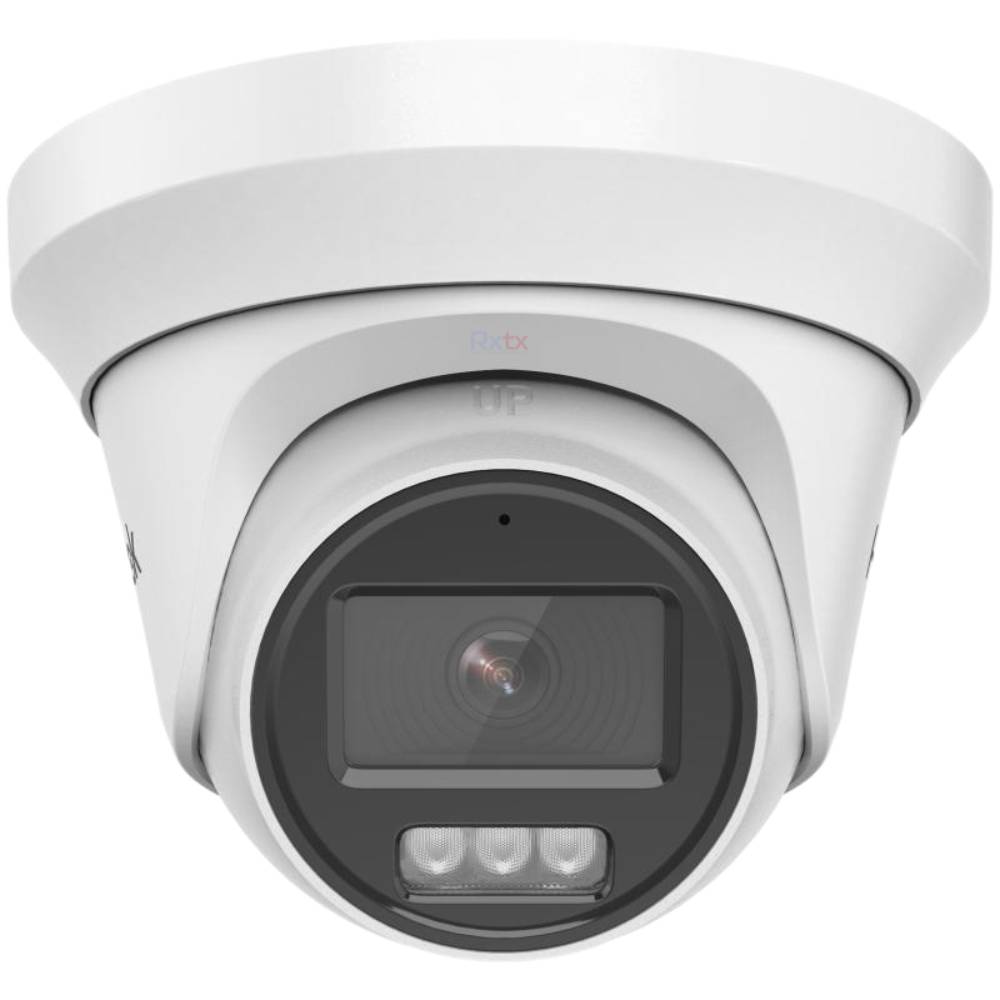

HiLook THC-T257-LMS 3K Dual Light Audio Fixed Turret Camera, One port for four switchable signals (TVI/AHD/CVI/CVBS）, (IP66)
Product SKU: HiLook THC-T257-LMS
Product Brand: HiLook
Product Currency: AUD
Product Price: 77
Product In-Stock: InStock
