IPC-T280H-M HiLook 8MP Turret Network Camera

IPC-T280H-M HiLook 8MP Turret Network Camera

Camera

• • IPC-T280H-M HiLook Image Sensor – 1/2.5″ progressive scan CMOS
  • Min. Illumination –  Color: 0.028 Lux @(F2.0, AGC ON), , 0 Lux with IR
  • Shutter Speed – 1/3 s to 1/100, 000 s
  • Slow Shutter – Yes
  • Wide Dynamic Range – 120 dB
  • Angle Adjustment – Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • DNR – 3D DNR
  • Day & Night – IR cut filter

IPC-T280H-M HiLook 8MP Turret Network Camera Lens

• • Lens Type – Fixed lens, 2.8/4 mm
  • Aperture – F2.0
  • FOV – 2.8 mm: Horizontal FOV: 97° , vertical FOV: 63°, diagonal FOV: 120° 4 mm: Horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°
  • Lens Mount – M12

IPC-T280H-M HiLook 8MP Turret Network Camera Illuminator

• • IR Range – Up to 30 m
  • Wavelength – 850 nm

Video

• • Max. Resolution – 3840 × 2160
  • Main Stream – 50Hz: 12.5fps (3840 × 2160), 20fps (3072 × 1728), 25fps (2560 × 1440, 1920 ×1080, 1280 × 720); 60Hz: 15fps (3840 × 2160), 20fps (3072 × 1728), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream –  50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream – 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288); 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression – Main stream/third stream: H.265/H.264; Sub-stream: H.265/H.264/MJPEG
  • H.264 Type – Main Profile/High Profile
  • H.264+ – Main stream supports
  • H.265 Type – Main Profile
  • H.265+ – Main stream supports
  • Video Bit Rate – 32 Kbps to 16 Mbps
  • Scalable Video Coding(SVC) – H.264 and H.265 encoding

IPC-T280H-M HiLook 8MP Turret Network Camera Audio

• • Audio Compression – G.711/G.722.1/G.726/MP2L2/PCM/MP3
  • Audio Bit Rate – 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Environment Noise Filtering – Yes
  • Audio Sampling Rate – 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

IPC-T280H-M HiLook 8MP Turret Network Camera Smart Feature-Set

• • Smart Event – Line crossing detection
  • Basic Event – Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Linkage Method – Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
  • Region of Interest –  1 fixed region for main stream and sub-stream

IPC-T280H-M Image

• • Image Enhancement – BLC, HLC, 3D DNR
  • Image Setting – Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Day/Night Switch – Day/Night/Auto/Schedule

Network

• • Network Storage – microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Protocols – TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • API – ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • Security – Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5) , watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF,TLS1.2
  • Simultaneous Live View – Up to 6 channels
  • User/Host – Up to 32 users, 3 levels: administrator, operator and user
  • Client – HiLookVision PC Client, HiLookVision App
  • Web Browser – Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51,  Safari8.0-11;Plug-in free live view: Chrome 45.0+, Mozilla Firefox52.0+

IPC-T280H-M HiLook 8MP Turret Network Camera Interface

• • Communication Interface – 1 RJ45 100M self-adaptive Ethernet port
  • Audio – 1 audio input (built-in microphone), mono sound
  • Video Output – No
  • Interface Style – Pigtail style interface
  • On-board storage – Built-in micro SD/SDHC/SDXC slot, up to 128 GB

IPC-T280H-M General

• • Firmware Version – 5.5.83
  • Web Client Language – 32 languages; English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional,Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function – Anti-flicker, three streams, heartbeat, mirror, 4 regions of privacy mask
  • Reset – Reset via reset button on camera body, web browser and client software
  • Startup and Operating Conditions – -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Storage Conditions – -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply – 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
  • Power Consumption and Current – 12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W
  • Material – Metal
  • Dimensions – Camera: Φ 127.3 × 95.9 mm (5″ × 3. 8″); With package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
  • Weight Camera: Approx. 635 g (1.4 lb.)
  • With package: Approx. 890 g (1.96 lb.)

IPC-T280H-M HiLook 8MP Turret Network Camera Approval

• • EMC – 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3:
    2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6,
    2016; KN 32: 2015, KN 35: 2015
  • Safety – UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 +
    Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
  • Chemistry – 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
  • Protection – Ingress protection: IP66 (IEC 60529-2013)

Available Model

• • IPC-280H-MU (2.8/4 mm)

IPC-T280H-M HiLook 8MP Turret Network Camera Isometric view – White

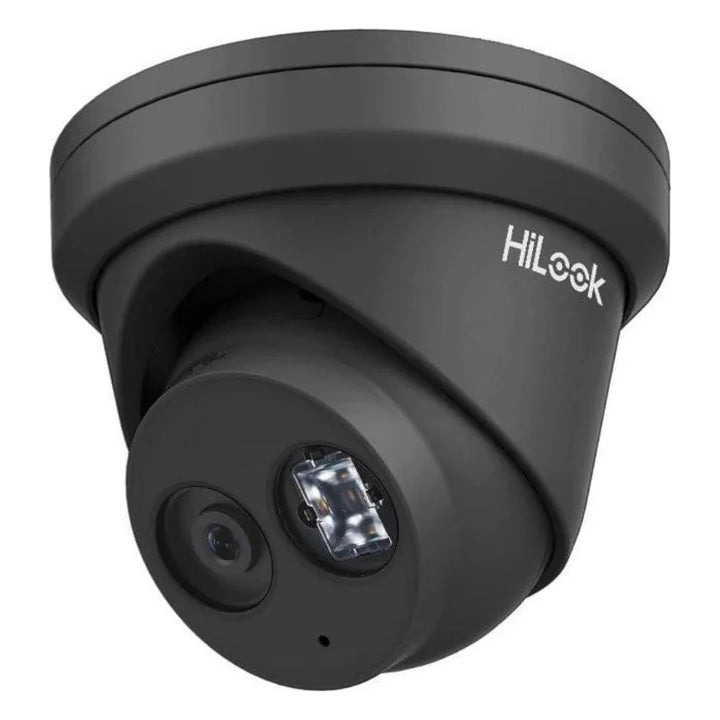

IPC-T280H-M HiLook 8MP Turret Network Camera Isometric view – Black

IPC-T280H-M HiLook 8MP Turret Network Camera Dimension

How to Install IP Turret Camera

Setting the Network Camera over the LAN

• • Purpose:
    To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the SADP or HiLookVision software to search and change the IP of the network camera.
    Note: For the detailed introduction of SADP
  •  Wiring over the LAN
    The two ways of cable connection of a network camera and a computer:
  • Purpose:
    To test the network camera, you can directly connect the network camera to the
    computer with a network cable

Activating the Camera

• • You are required to activate the camera first by setting a strong password for it before
    you can use the camera.
  • Activation via Web Browser, Activation via SADP, and Activation via Client Software
    are all supported.
    Activation via Web Browser
    Steps:
    1. Power on the camera, and connect the camera to the network.
    2. Input the IP address into the address bar of the web browser, and click Enter to enter the activation interface.
    Notes: The default IP address of the camera is 192.168.1.64. For the camera enables the DHCP by default, the IP address is allocated automatically. And you need to activate the camera via SADP software.

Setting the Network Camera over the WAN

• • Purpose:
    This section explains how to connect the network camera to the WAN with a static IP
    or a dynamic IP.
    Static IP Connection
    Before you start:
    Please apply a static IP from an ISP (Internet Service Provider). With the static IP
    address, you can connect the network camera via a router or connect it to the WAN
    directly.
    Connecting the network camera via a router
    Steps:
    1. Connect the network camera to the router.
    2. Assign a LAN IP address, the subnet mask and the gateway.
    3. Save the static IP in the router.
    4. Set port mapping, e.g., 80, 8000, and 554 ports. The steps for port mapping vary according to the different routers. Please call the router manufacturer for assistance with port mapping.
    5. Visit the network camera through a web browser or the client software over the internet.
    6.Connecting the network camera with static IP directly
    You can also save the static IP in the camera and directly connect it to the internet without using a router.

Dynamic IP Connection

• • Before you start:
    Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect
    the network camera to a modem or a router.
    Connecting the network camera via a router
    Steps:
    1. Connect the network camera to the router.
    2. In the camera, assign a LAN IP address, the subnet mask and the gateway.
    3. In the router, set the PPPoE user name, password and confirm the password.
    4. Set port mapping. E.g. 80, 8000, and 554 ports. The steps for port mapping vary
    depending on different routers. Please call the router manufacturer for assistance
    with port mapping.
    5. Apply a domain name from a domain name provider.
    6. Configure the DDNS settings in the setting interface of the router.
    7. Visit the camera via the applied domain name.
  • Connecting the network camera via a modem
    • Purpose:
      This camera supports the PPPoE auto dial-up function. The camera gets a public IP
      address by ADSL dial-up after the camera is connected to a modem. You need to
      configure the PPPoE parameters of the network camera.
    • Note: The obtained IP address is dynamically assigned via PPPoE, so the IP address
      always changes after rebooting the camera. To solve the inconvenience of the
      dynamic IP, you need to get a domain name from the DDNS provider (E.g.
      DynDns.com). Please follow the steps below for normal domain name resolution and
      private domain name resolution to solve the problem.
    • Normal Domain Name Resolution
      Steps:
      1. Apply a domain name from a domain name provider.
      2. Configure the DDNS settings in the DDNS Settings interface of the network
      camera.
      3. Visit the camera via the applied domain name.
    • Private Domain Name Resolution
      Steps:
      1. Install and run the IP Server software in a computer with a static IP.
      2. Access the network camera through the LAN with a web browser or the client
      software.
      3. Enable DDNS and select IP Server as the protocol type.
