| Wireless Protocols | 802.11a/b/g/n/ac/ax |
|---|---|
| Data Rate | Combined peak data rate: 2.4 GHz + 5 GHz, 5.2 Gbps |
| Fixed Service Port | 3 x 10/100/1000Base-T Ethernet port |
| Input Power Supply | 48 V DC/0.6 A power supply PoE/PoE+ (802.3af/at) |
| External Power Supply | Yes |
| IP Rating | N/A |
| Mounting | Wall/Ceiling mounting |
| Radio Design | Dual-radio: 2.4 GHz (2×2), 5 GHz (4×4) up to 6 spatial streams |
| Antenna Type | Built-in smart antenna |
| Bluetooth | Support |
| Max. Power Consumption | 25.4 W |
| Operating Temperature | –10°C to +50°C (14°F to 122°F) |
| Dimensions (W x D x H) | 220 mm x 220 mm x 48.85 mm (8.7 in. x 8.7 in. x 2.2 in.) |
| Warranty | 3 Years |
| General Information | |
|---|---|
| Manufacturer: | Ruijie Networks |
| Manufacturer Part Number: | RG-AP680(CD) |
| Barcode: | 6971693273870 |
| Packaging Details | |
| Weight: | 2.92 KGS |
| Width: | 24.00 (cm) |
| Height: | 33.00 (cm) |
| Depth: | 41.00 (cm) |

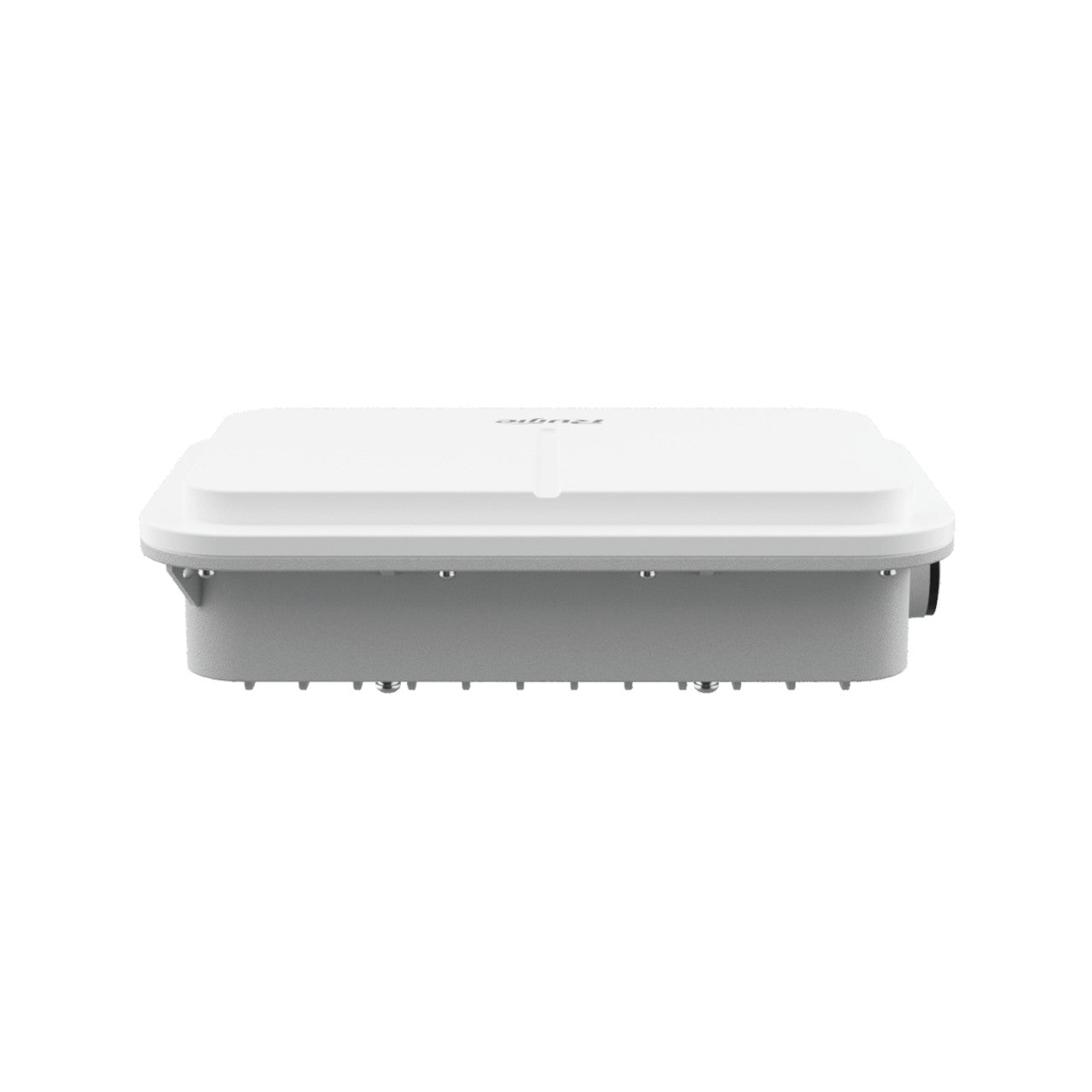

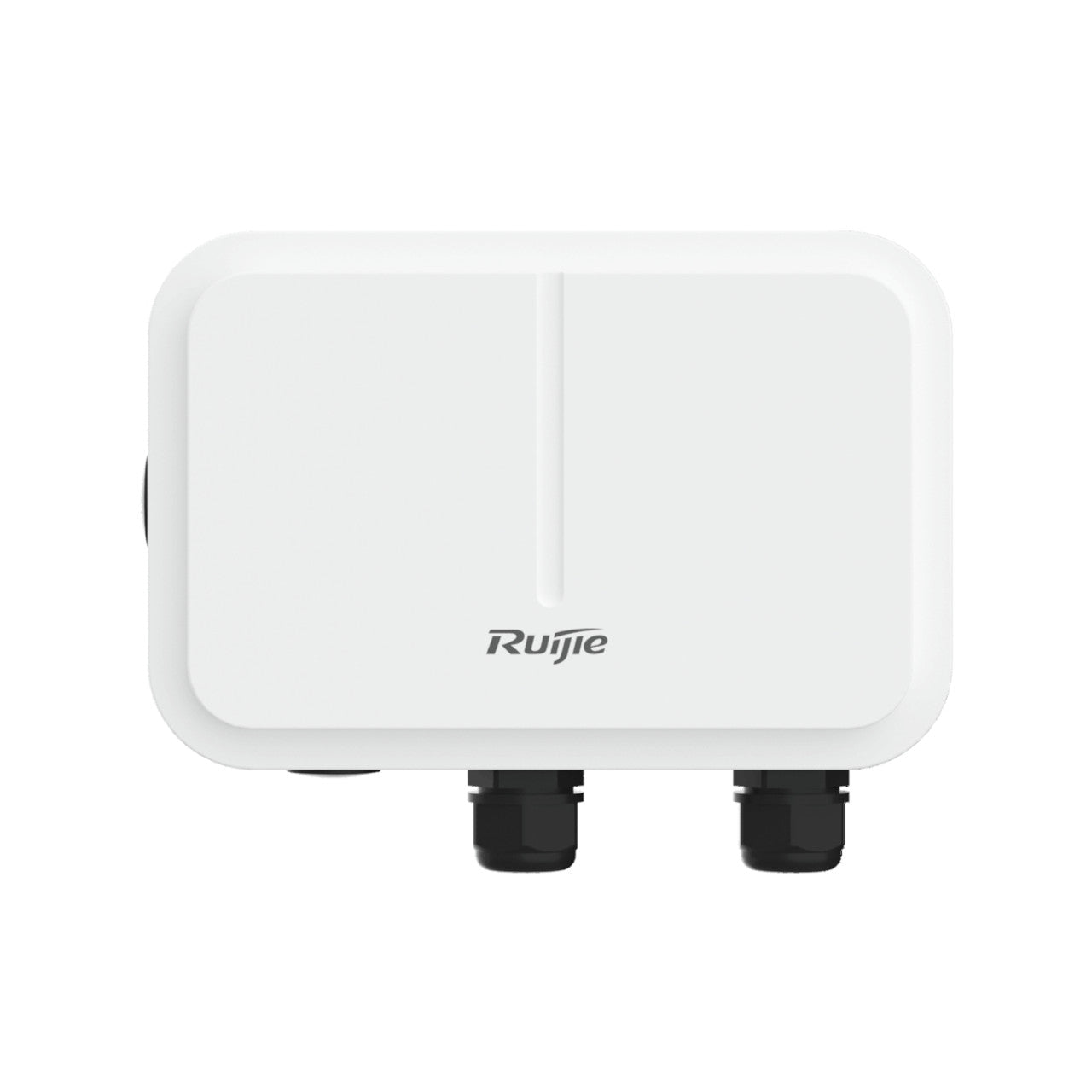

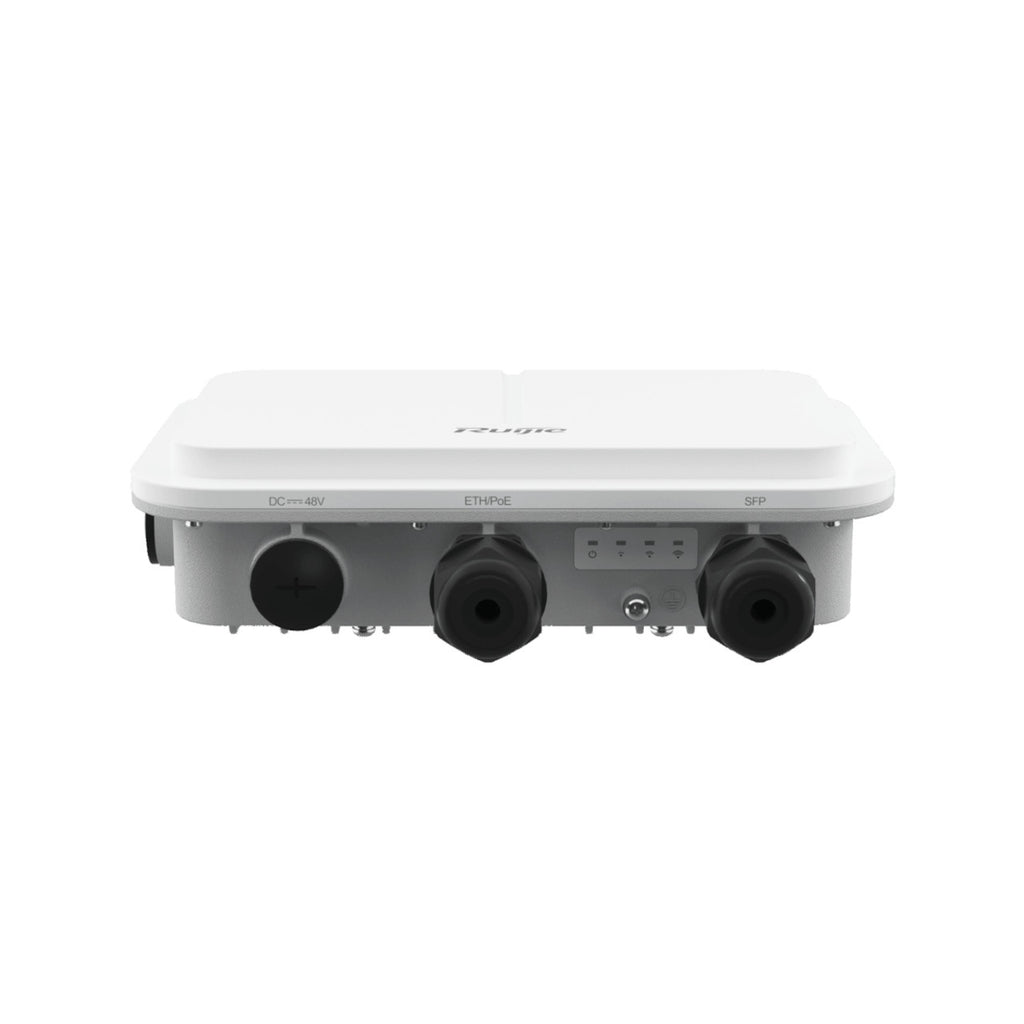

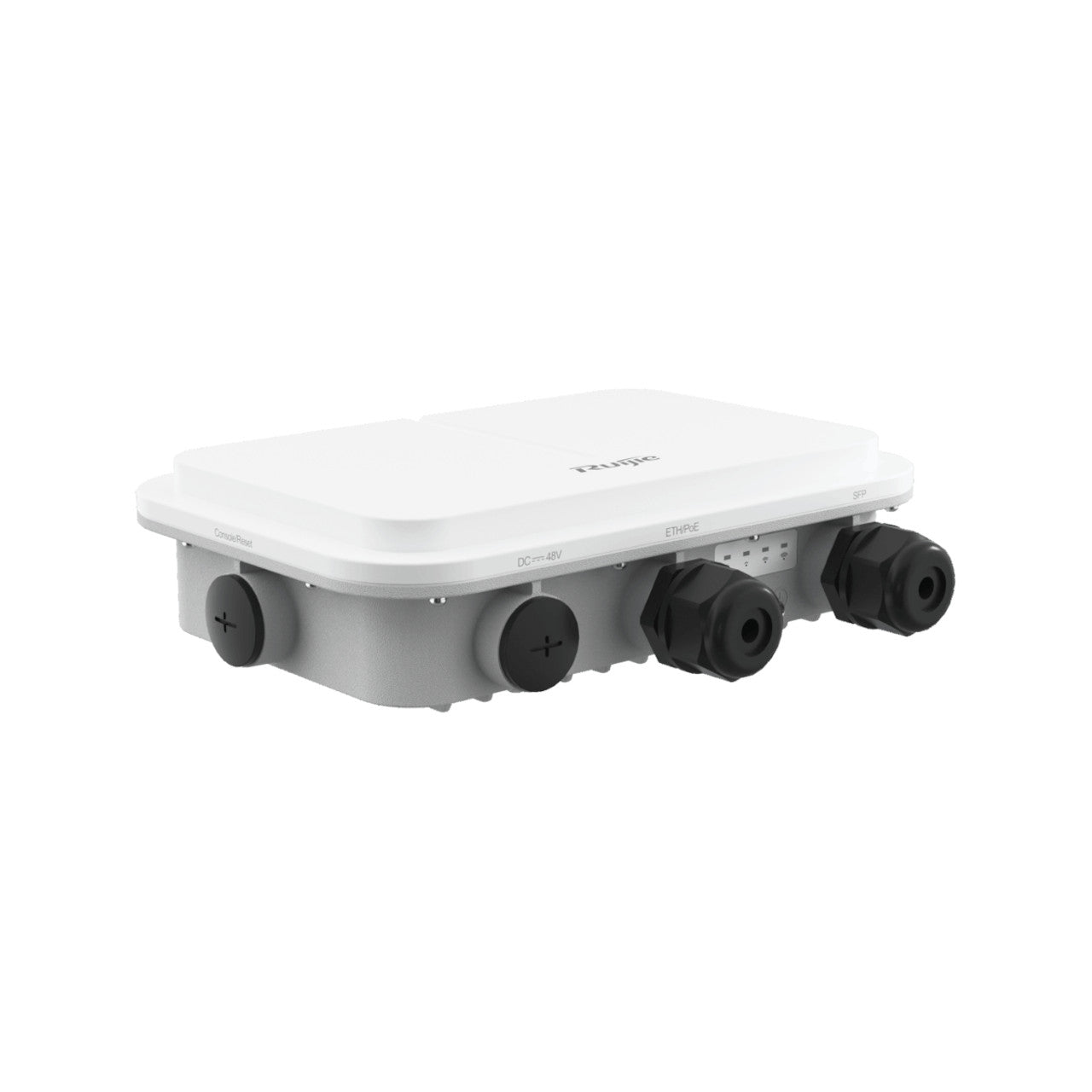

The RG-AP680(CD) PoE WiFi 6 AP offers dual-band (802.11ax) network access with speeds up to 2.4Gbps on 5GHz and 4 spatial streams using smart antennas. Built for extreme environments, its IP68-rated enclosure ensures long-lasting protection, making it suitable for various installation locations and reducing maintenance costs. It supports multi-hop and point-to-multipoint bridge options for flexible network deployment.
The AP can operate in standalone or managed configurations, detecting the mode automatically. For added security and functionality, choose between the public cloud option, Ruijie Cloud, which offers features like a captive portal, various authentication methods (PPSK, Facebook, voucher, etc.), and reporting. The Ruijie Cloud Mobile App lets SME customers manage their networks easily.
FEATURES:
- POE sold separately RG-AE-130(GE)
- Wi-Fi 6 Certified
- MU-MIMO (Multiuser Multiple In Multiple Out), OFDMA, and BSS Technology
- Concurrent 2.4Gbps (Max Throughput) dual-band radios
- 1024 (Max) Client connections
- 4 X 9dBi Built-in Smart Directional Antenna
- Supports standalone AP (Fat mode) or managed AP (Fit mode)
- IP68 Environmental Protection (-40-65°C)
- Surge Protection 9kV (Max)
- POE Support
- Remote Management: Via the Free Mobile App, RG-MACC-Base Private Cloud or Public Ruijie Cloud
Ruijie RG-AP680(CD) POE high durability, high-performance Wi-Fi 6 (802.11ax) enterprise outdoor AP with IP68 rating designed for extreme outdoor conditions.
