| Specifications | Description |
|---|---|
| Wireless Protocols | 802.11a/b/g/n/ac/ax |
| Radio Design | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2) up to 4 spatial streams |
| Data Rate | Combined peak data rate: 2.4 GHz + 5 GHz, 2.976 Gbps |
| Antenna Type | Built-in omnidirectional antenna |
| Fixed Service Port | 1 x 10/100/1000Base-T Ethernet port 1 x 1GE SFP port |
| Bluetooth | Bluetooth 5.0 |
| Input Power Supply | 48 V DC/0.35 A power supply PoE/PoE+ (802.3af/at) |
| Max. Power Consumption | 12.95 W |
| External Power Supply | No |
| Operating Temperature | –40°C to +65°C (–40°F to +149°F) |
| IP Rating | IP68 |
| Dimensions (W x D x H) | 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) |
| Mounting | Ceiling/Pole mounting |
| Warranty | 3 Years |
| General Information | |
|---|---|
| Manufacturer: | Ruijie Networks |
| Manufacturer Part Number: | RG-AP680-L |
| Barcode: | 6971693277960 |
| Packaging Details | |
| Weight: | 3.15 KGS |
| Width: | 17.00 (cm) |
| Height: | 7.00 (cm) |
| Depth: | 26.00 (cm) |

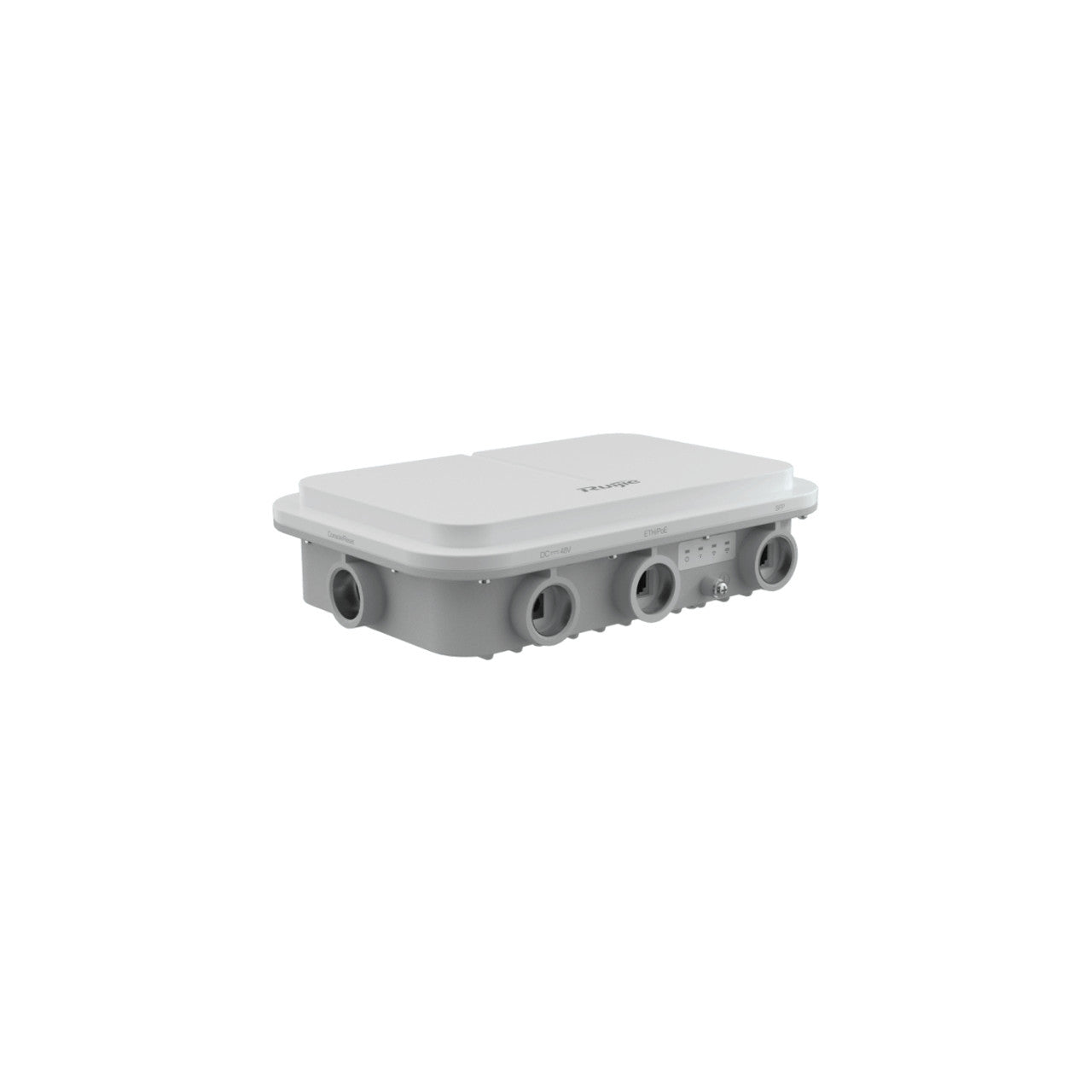

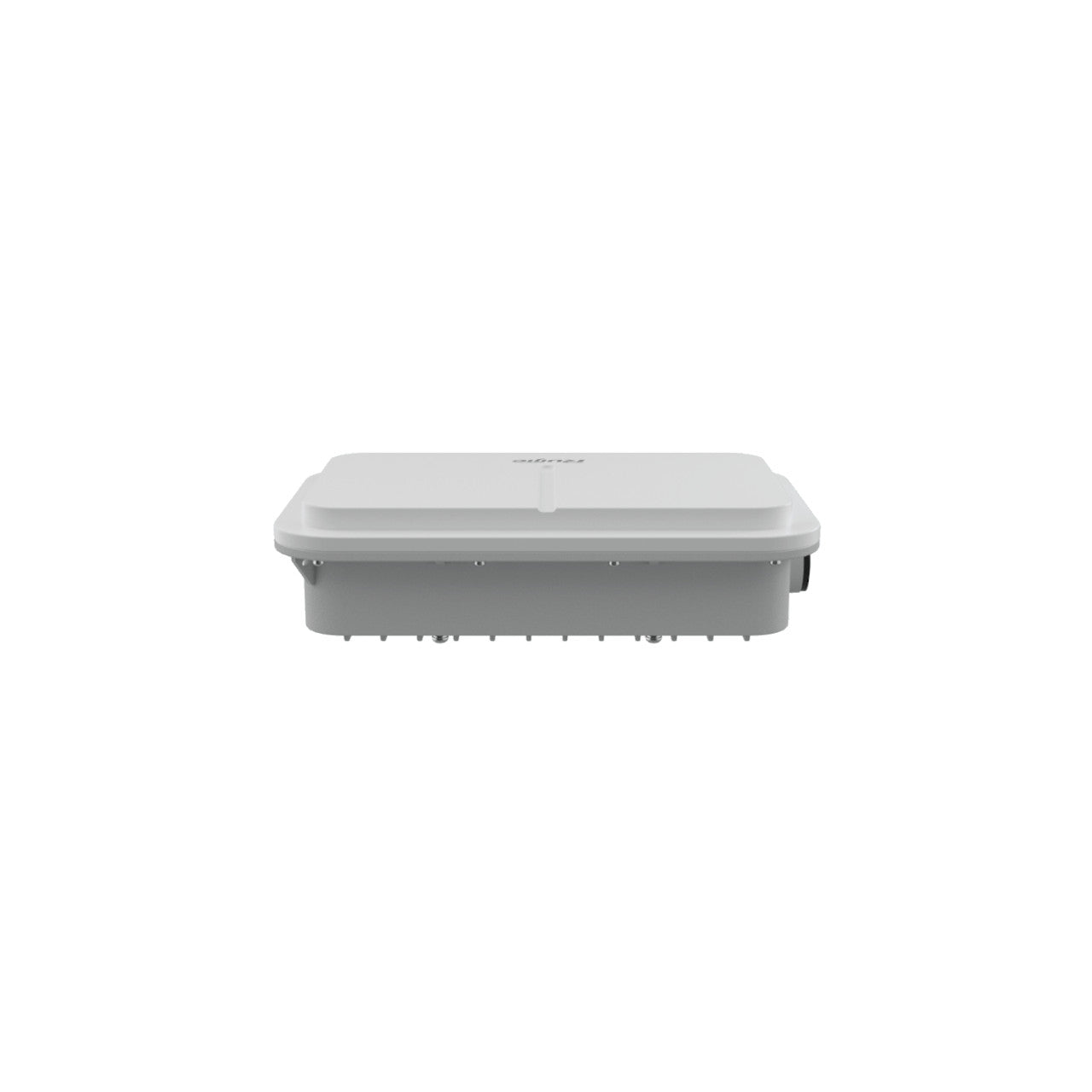

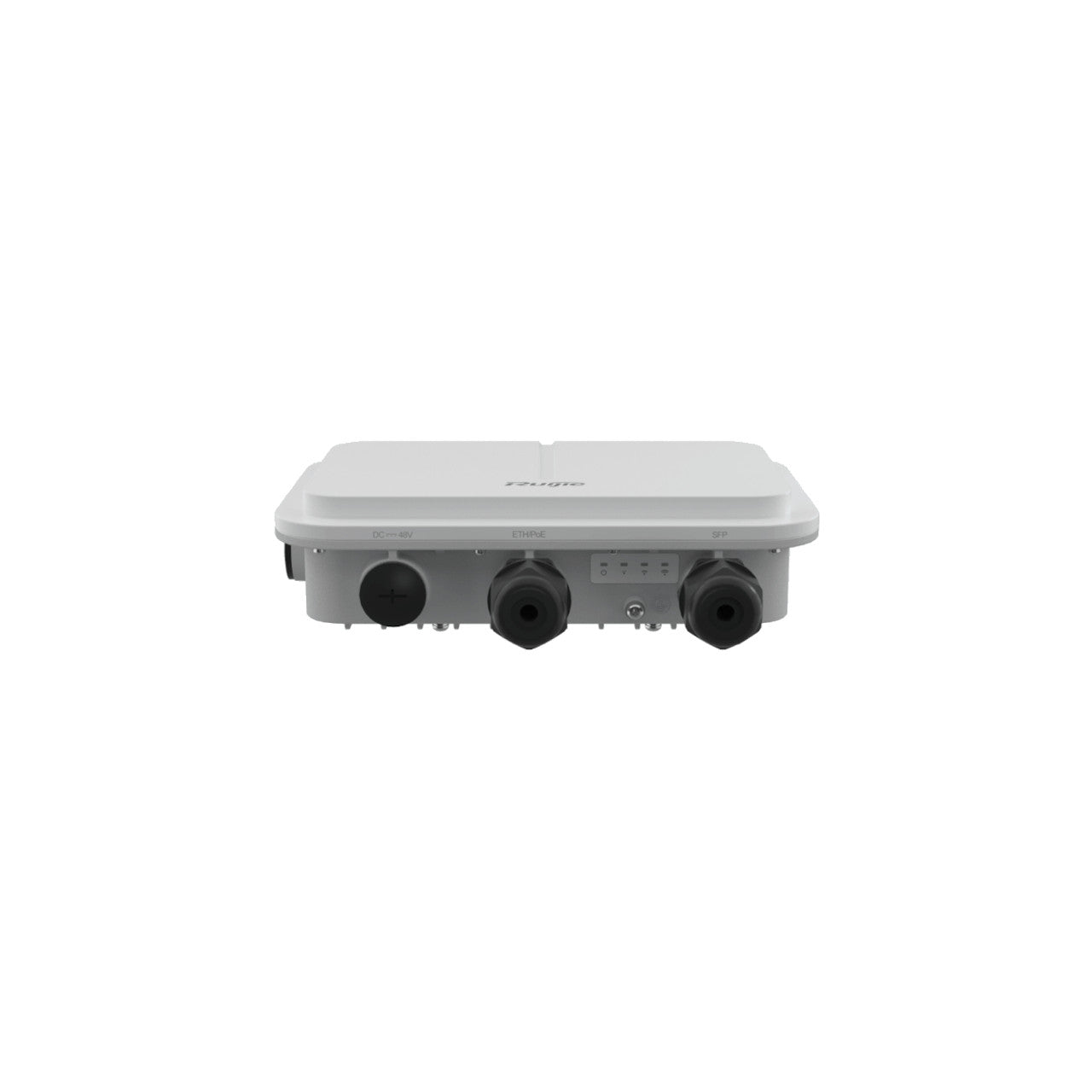

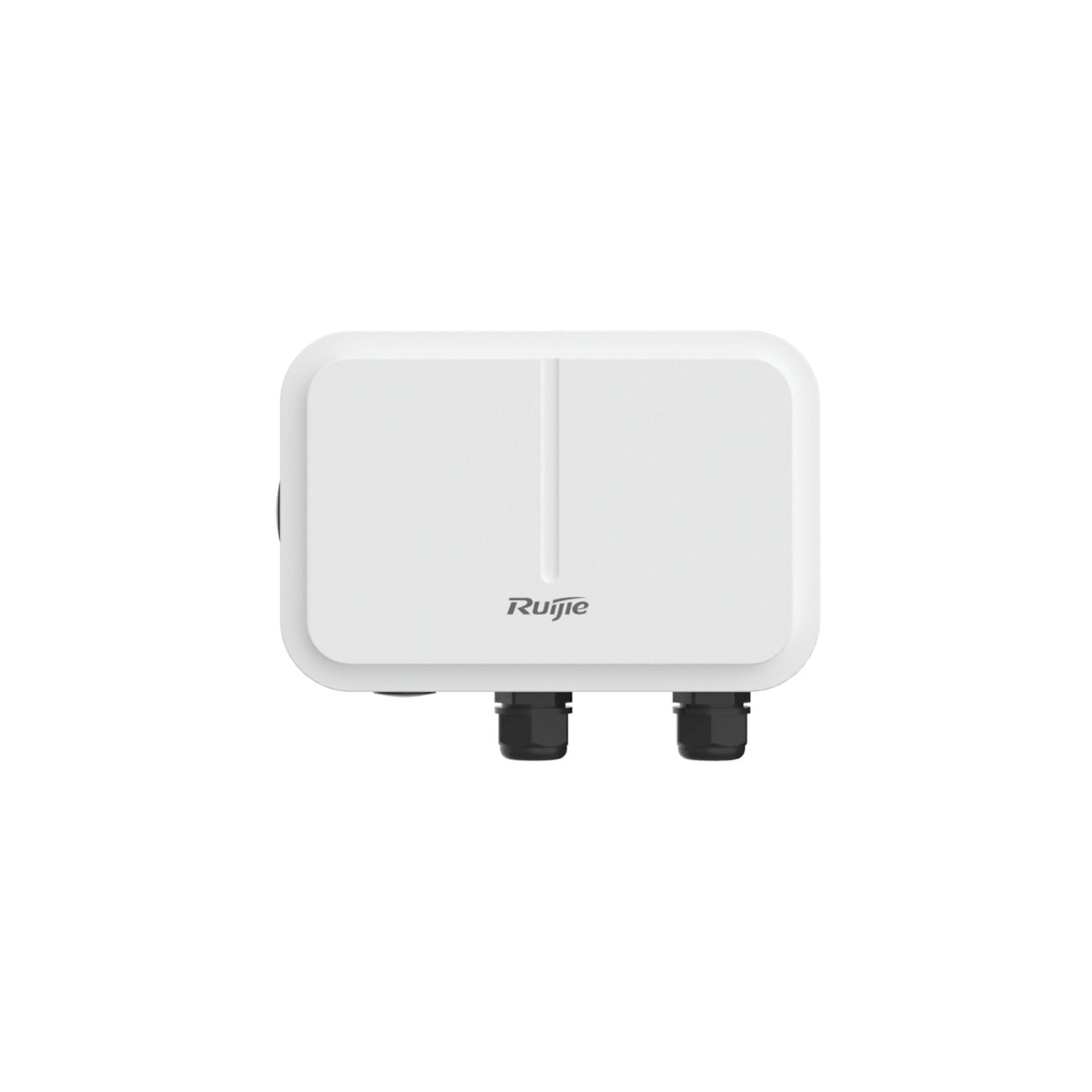

The RG-AP680-L Wi-Fi 6 Dual-Radio 2975 Mbps Outdoor Access Point is a high-performance AP designed for various outdoor scenarios such as general education, SME, energy, business, government, and healthcare sectors. Part of the Ruijie Reyee Cloud-managed Outdoor AP series, this access point offers exceptional durability and advanced technological features.
Features:
- Industrial-Grade Design: With an IP68 rating, the RG-AP680-L is built to withstand harsh environments, featuring corrosion protection compliant with salt spray prevention standards. It is fully operational in temperatures ranging from -40°C to +65°C, suitable for both hot and cold climates.
- Lightning Protection: Equipped with 6 kV lightning protectors, it guarantees uninterrupted operation during adverse weather conditions, including thunderstorms.
- Omnidirectional Antennas: The device includes 28 dBm high-power omnidirectional antennas, providing 360° coverage up to 100 meters in radius. This ensures excellent signal coverage in outdoor spaces where client devices are spread out.
- Wi-Fi 6 AX3000 Technology: With a combined data rate of up to 2975 Mbps, the RG-AP680-L supports high concurrency and low latency as low as 20 ms. It utilizes OFDMA and MU-MIMO technologies for stable multiple connections and features the latest WPA3 encryption for enhanced security.
- Cloud Management: The access point is easily managed via Ruijie cloud, offering remote monitoring and Wi-Fi management, cloud portal authentication, and wireless intelligent optimization.
