| Service port | 24 x 10/100/1000 BASE-T ports 4 x 1G/10G SFP+ ports IEEE 802.3af and 802.3at |
|---|---|
| Management | 1 x MGMT port, 1 x console port, and 1 x USB 2.0 port |
| Power module | 2 x power modules (1+1 redundancy of power modules) |
| System switching capacity * | 154 Gbps |
| System packet forwarding rate * | 115 Mpps |
| Power Consumption | <85W (Non POE) <810W (PoE full load) |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm (17.40 in. x 16.56 in. x 1.72 in.), 1 RU |
| Flash Memory | 2GB |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Warranty duration | 3 years |
| General Information | |
|---|---|
| Manufacturer: | Ruijie Networks |
| Manufacturer Part Number: | RG-S5310-24GT4XS-P-E |
| Barcode: | 6971693272767 |
| Packaging Details | |
| Weight: | 4.30 KGS |
| Width: | 42.00 (cm) |
| Height: | 5.00 (cm) |
| Depth: | 45.00 (cm) |
The RG-S5310-24GT4XS-PE switches support various ARP anti-spoofing modes. Whether users obtain addresses automatically through a DHCP server or use fixed IP addresses, the RG-S5300-E Series can record users' actual IP + MAC addresses. The port receives the ARP packet sent by the host, compares the contents of the ARP packet with the recorded IP + MAC address, and forwards the ARP packet with only the actual contents and discards the fake ARP packet. This way, network users are protected from ARP virus attacks.

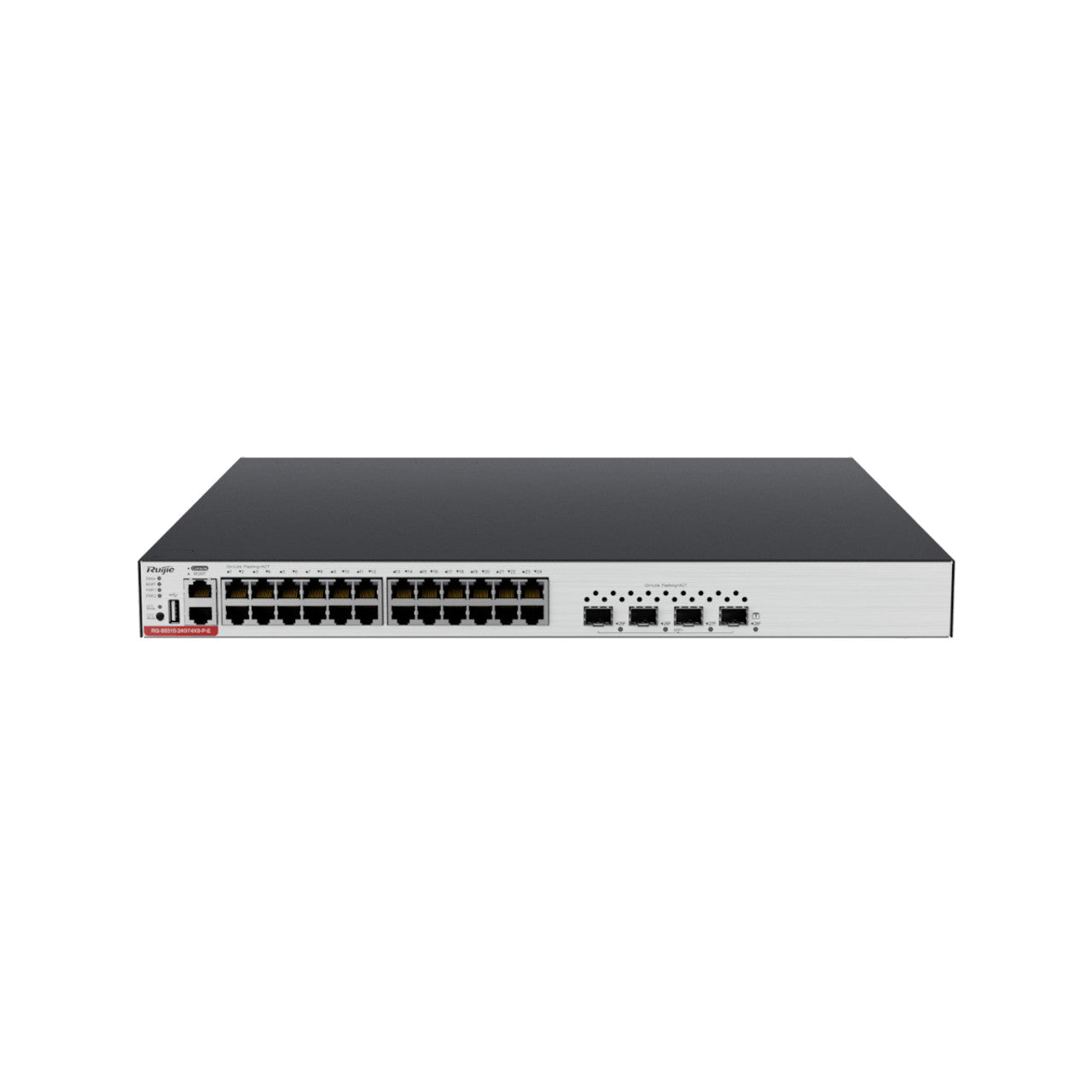

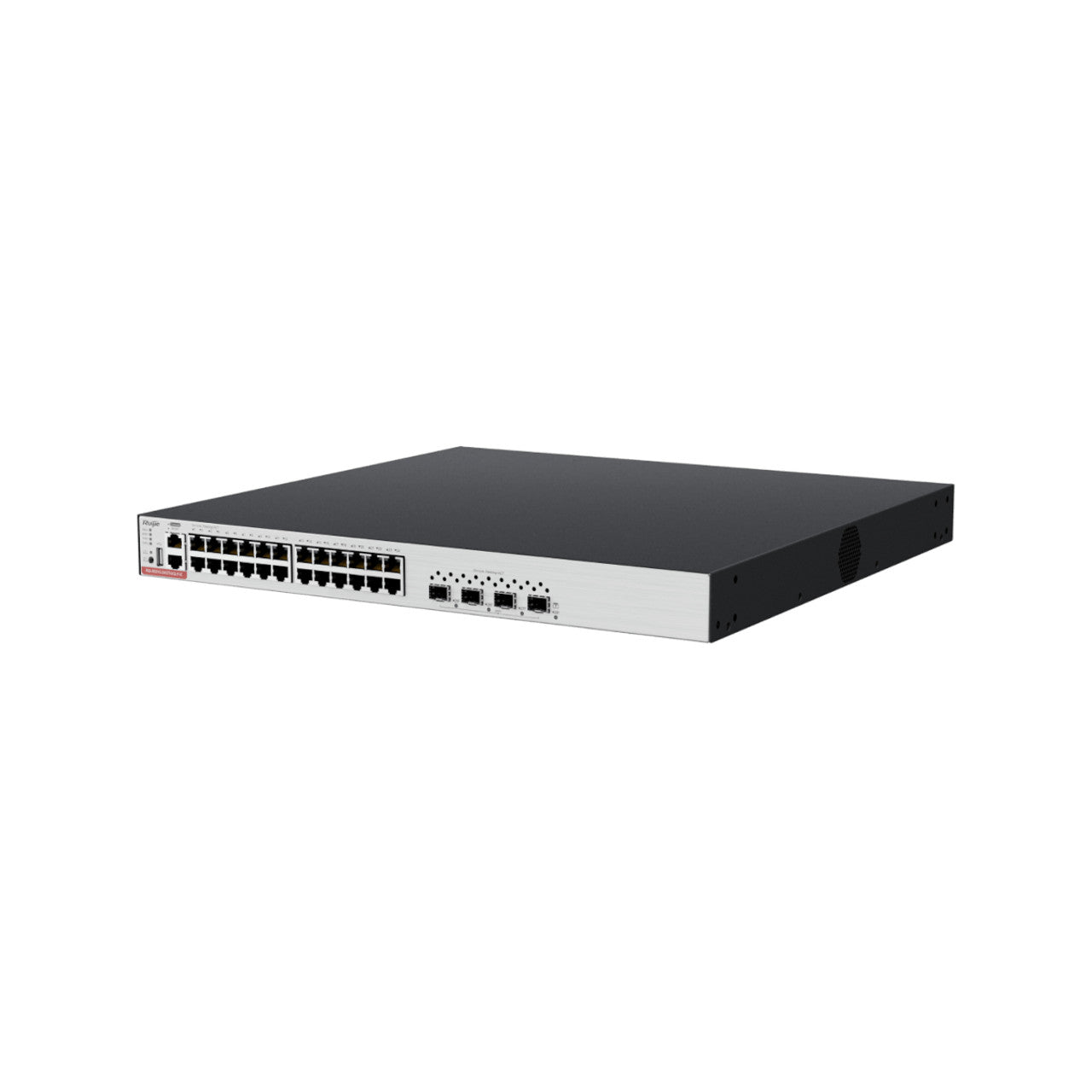

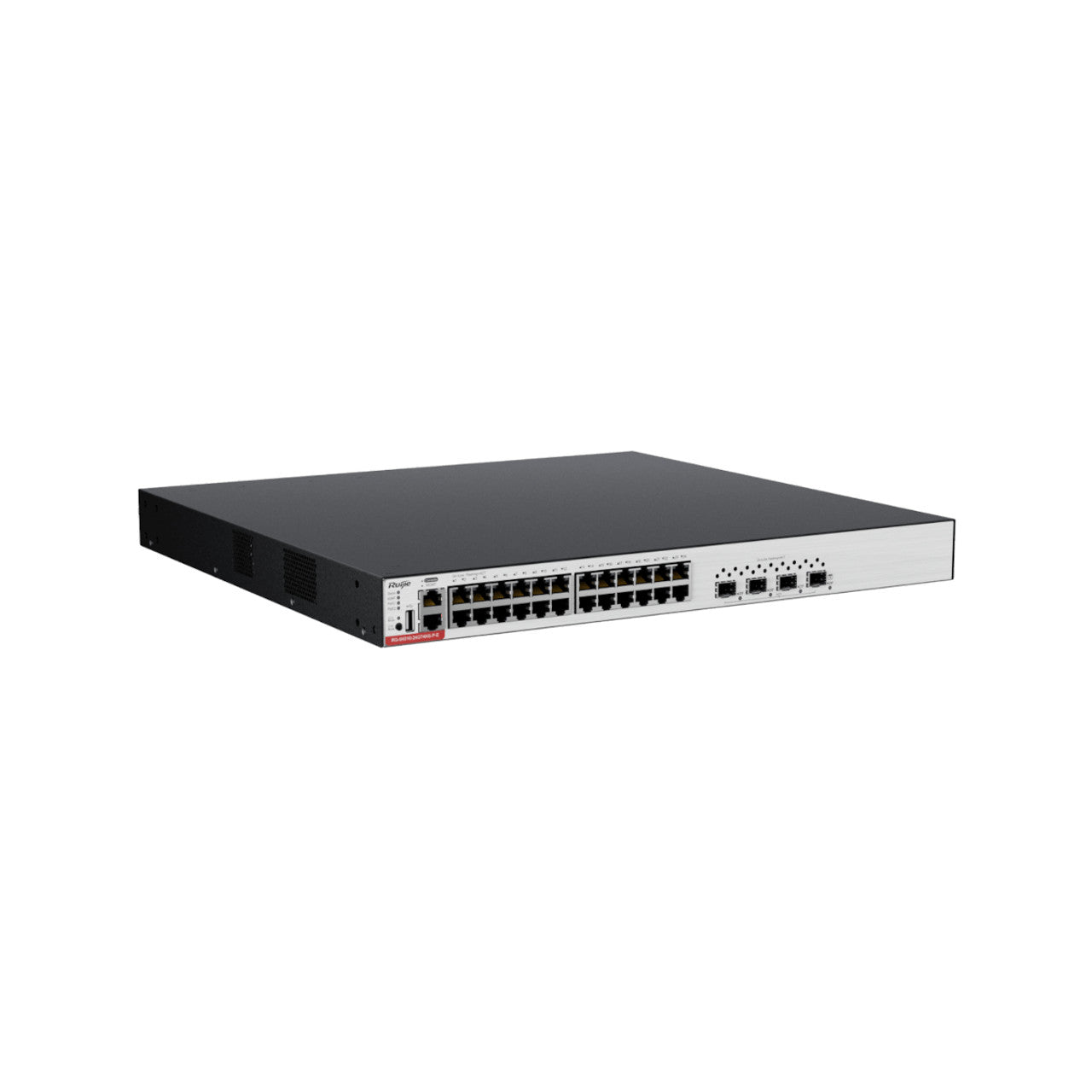

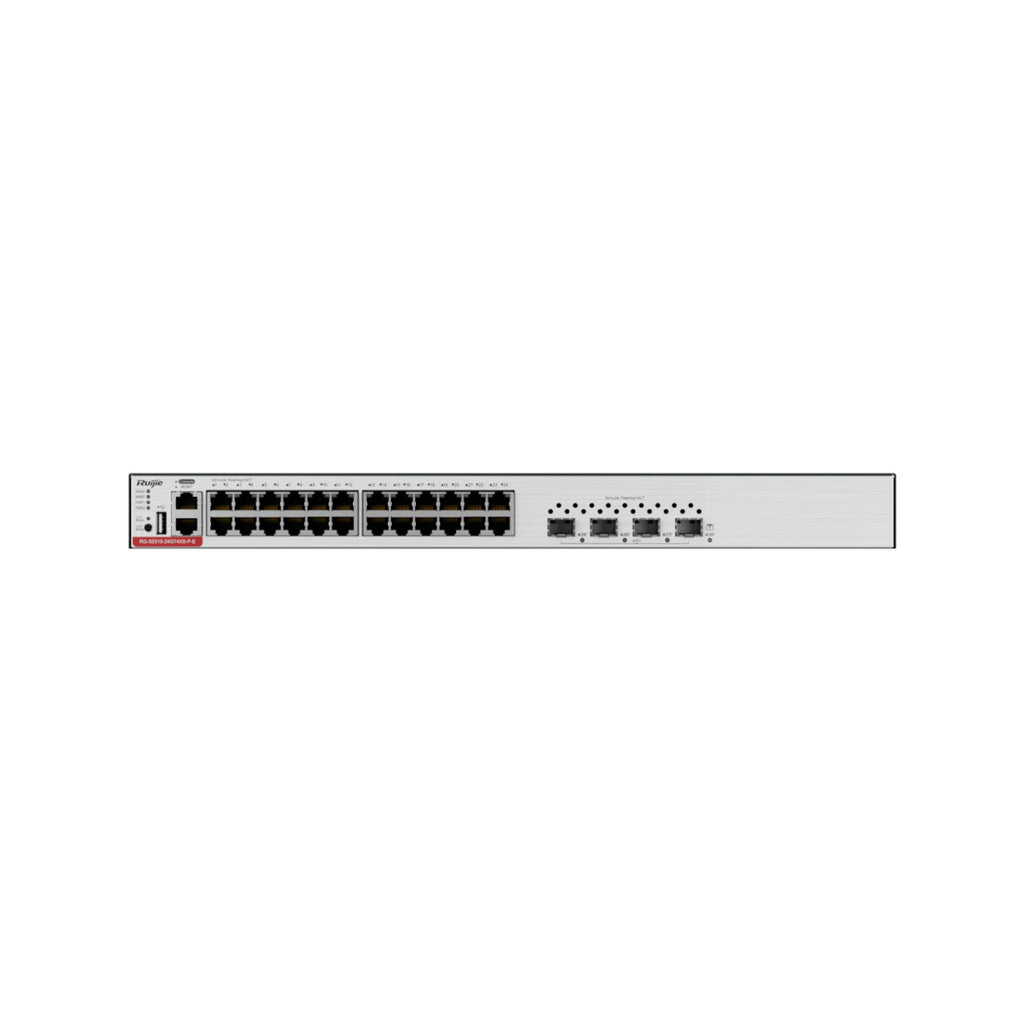

Ruijie Reyee RG-S5310-24GT4XS-P-E 24 Port L3 Managed PoE Switch is a next-generation gigabit Ethernet switch launched by Ruijie according to its design philosophy of security, high efficiency, energy saving, and independent innovation. This S5310 series can provide full gigabit access and flexibly extensible 10G uplink data exchanges. With a new hardware architecture and Ruijie's latest RGOS12.X modular OS, the RG-S5310-E series are capable of providing more resource entries, faster hardware processing, and better user experience.
FEATURES:
- Built-in Layer 3 Routing (12K Routing table and L3 Multicast)
- Full series model with 4 10G Uplink and VXLAN support
- Seamless service failover by Ruijie Virtual Switching Unit (VSU) technology (50 to 200ms)
- 1+1 Power Redundancy Support (AC/DC)
