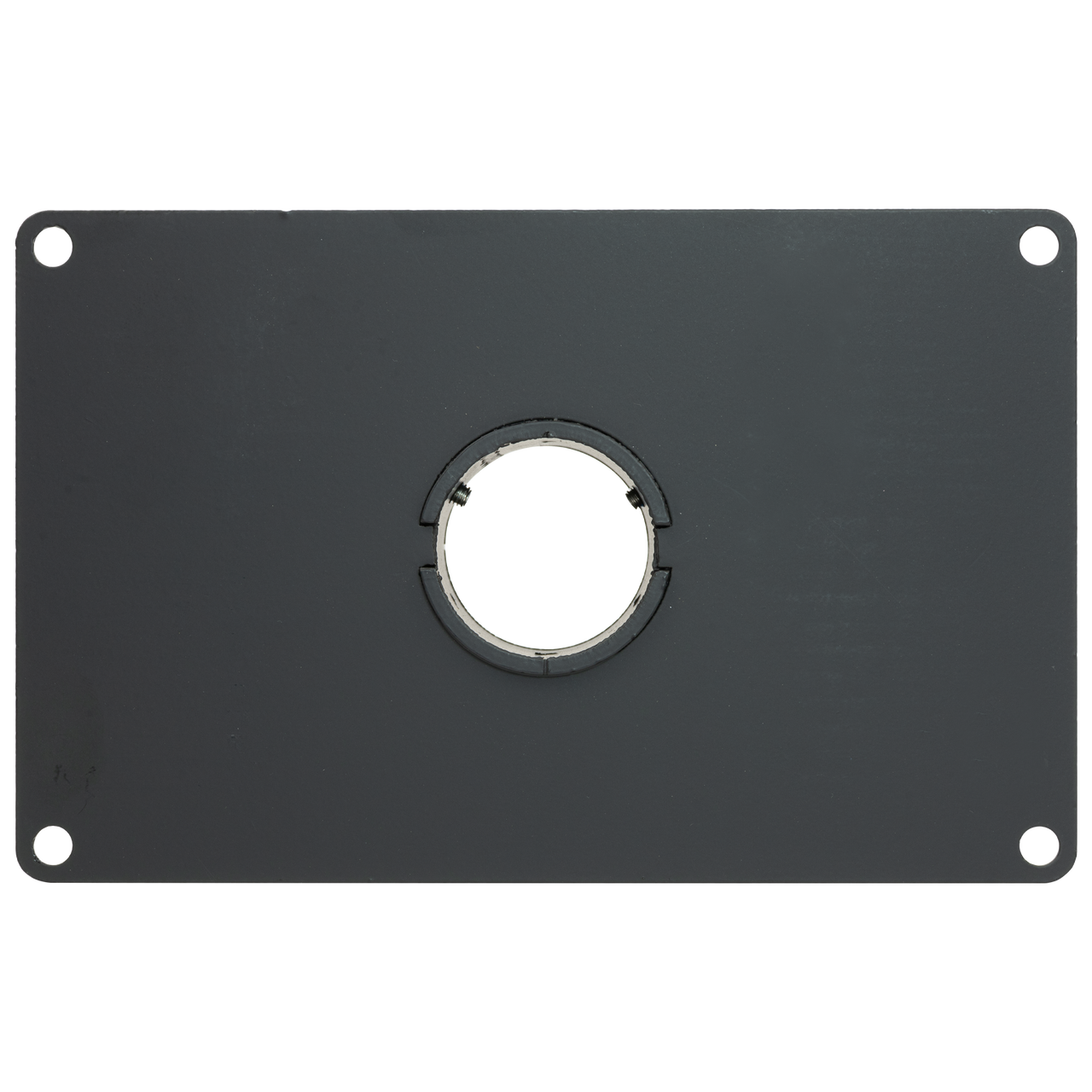

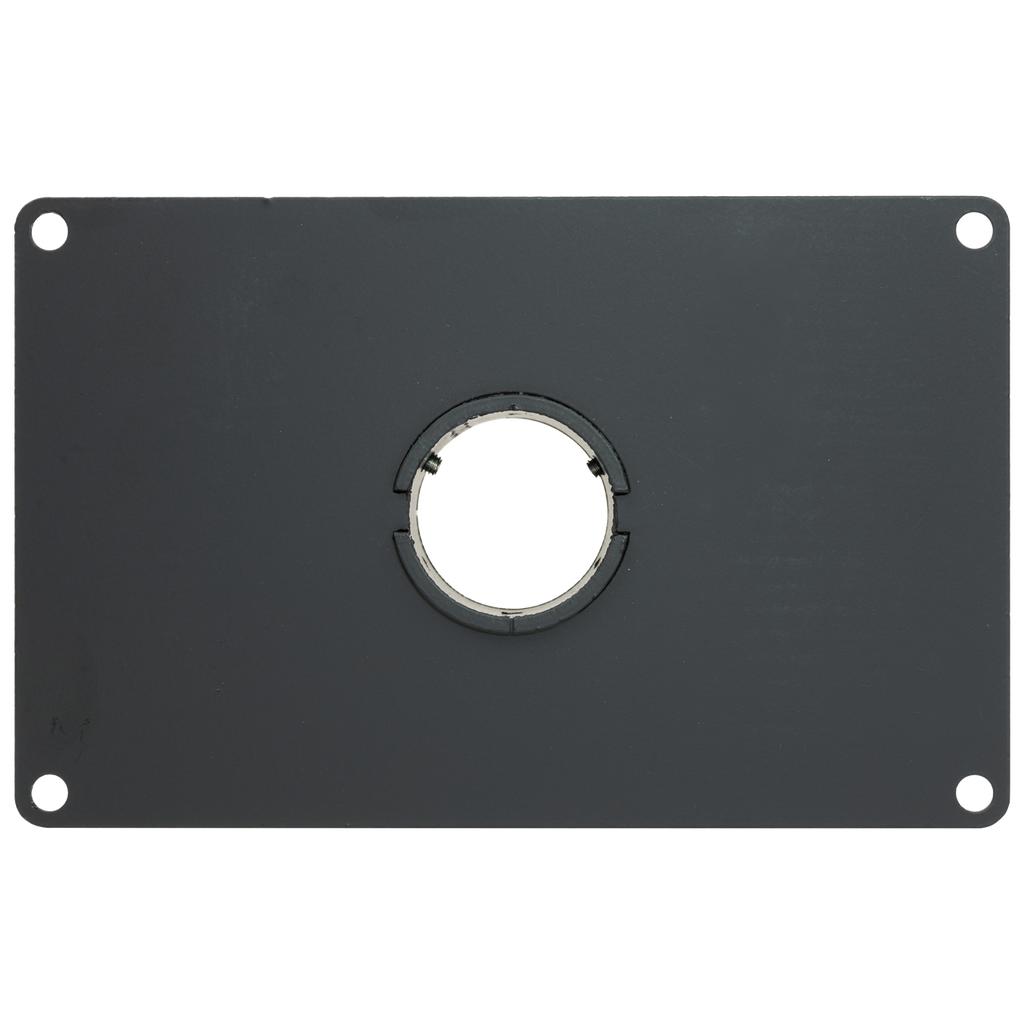

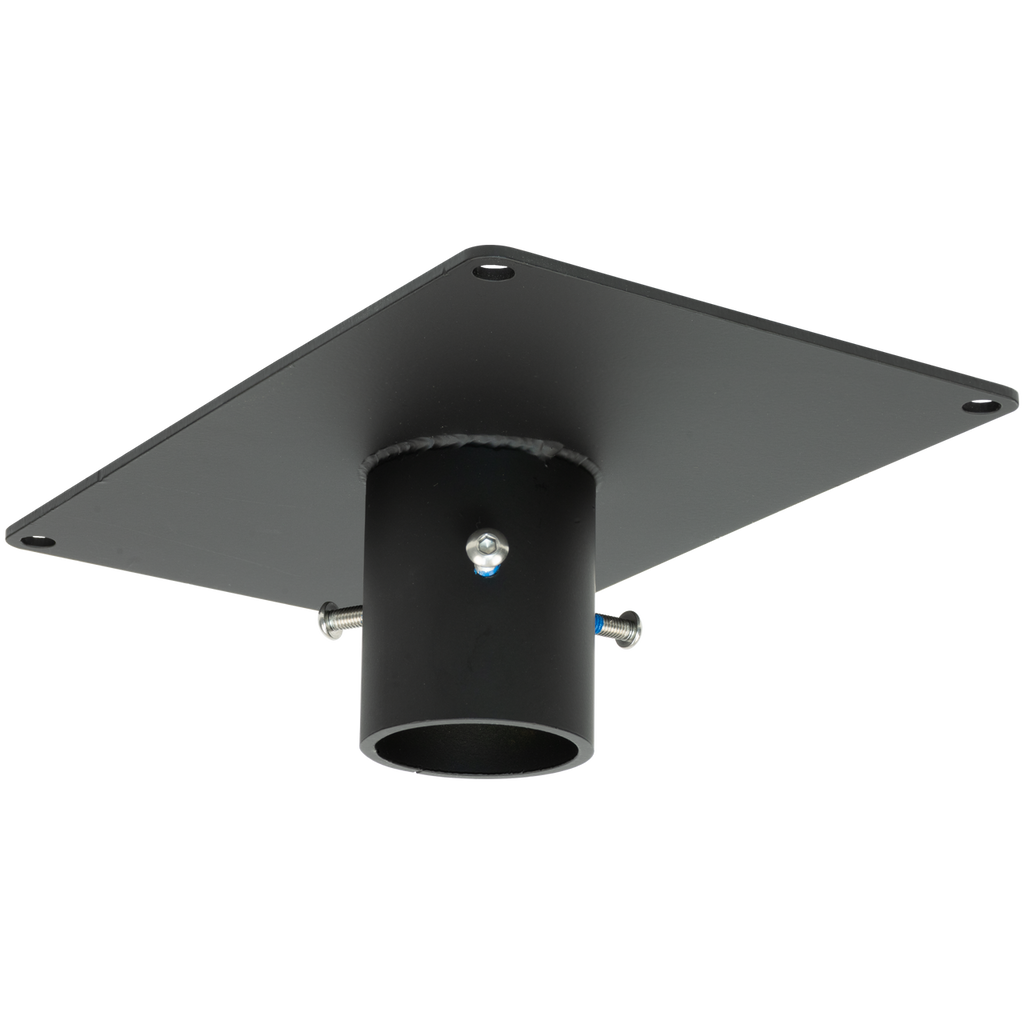

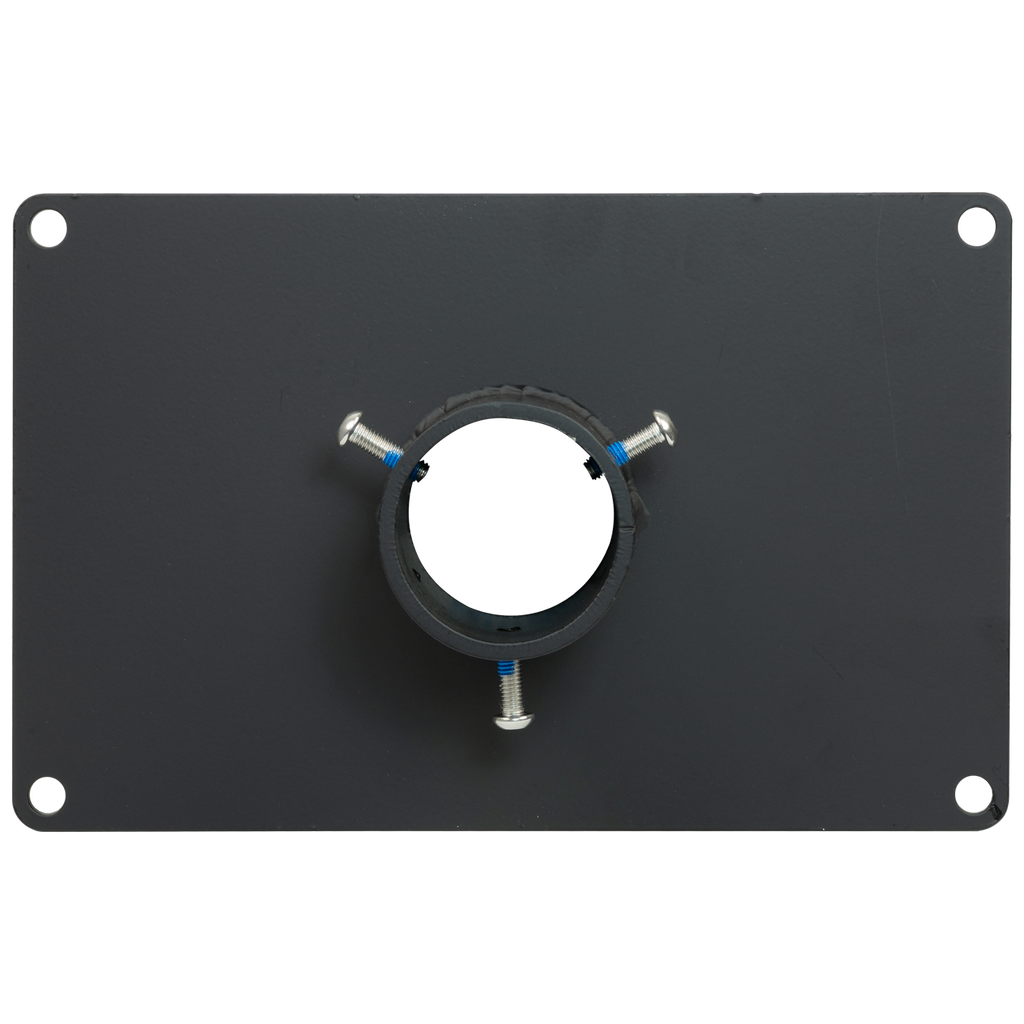

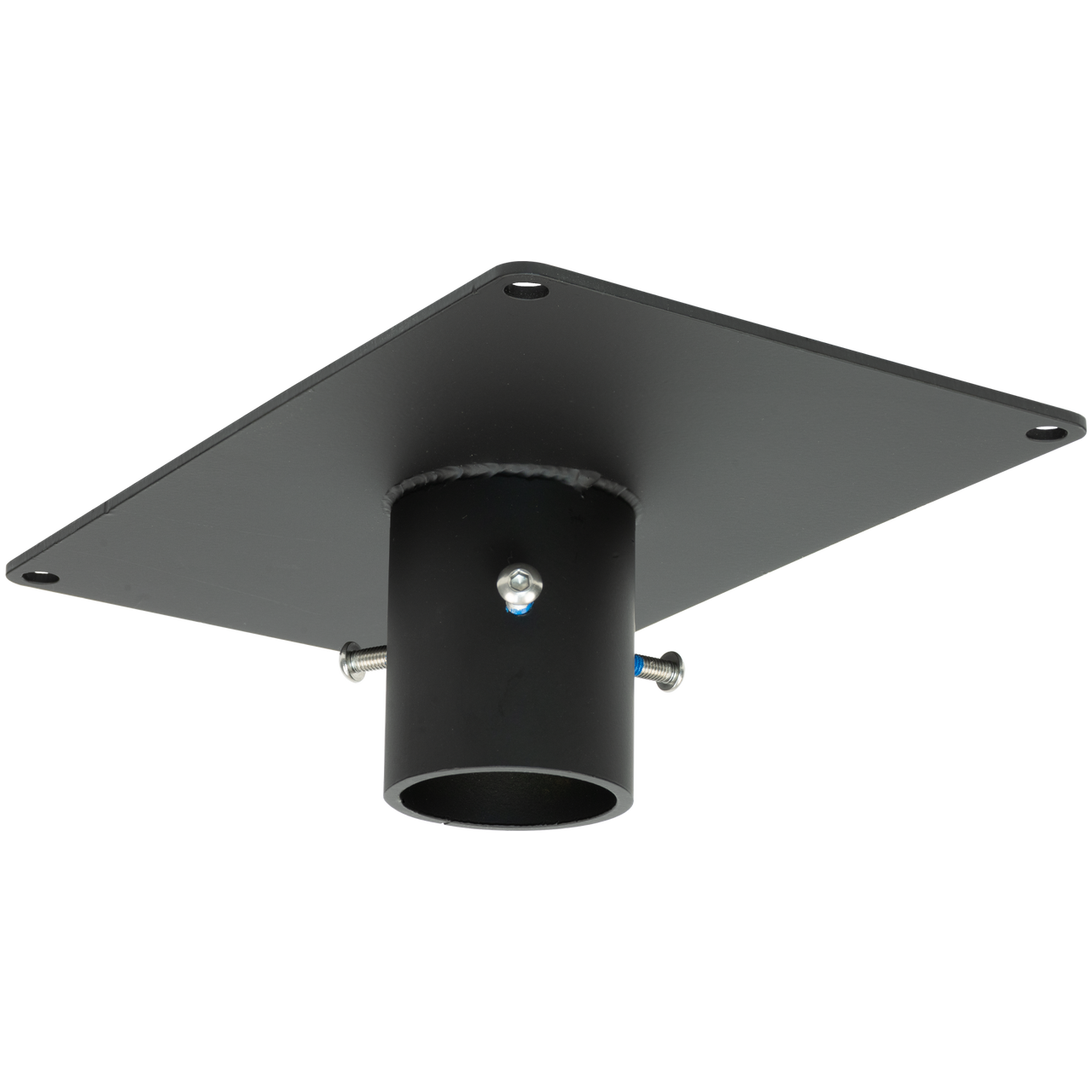

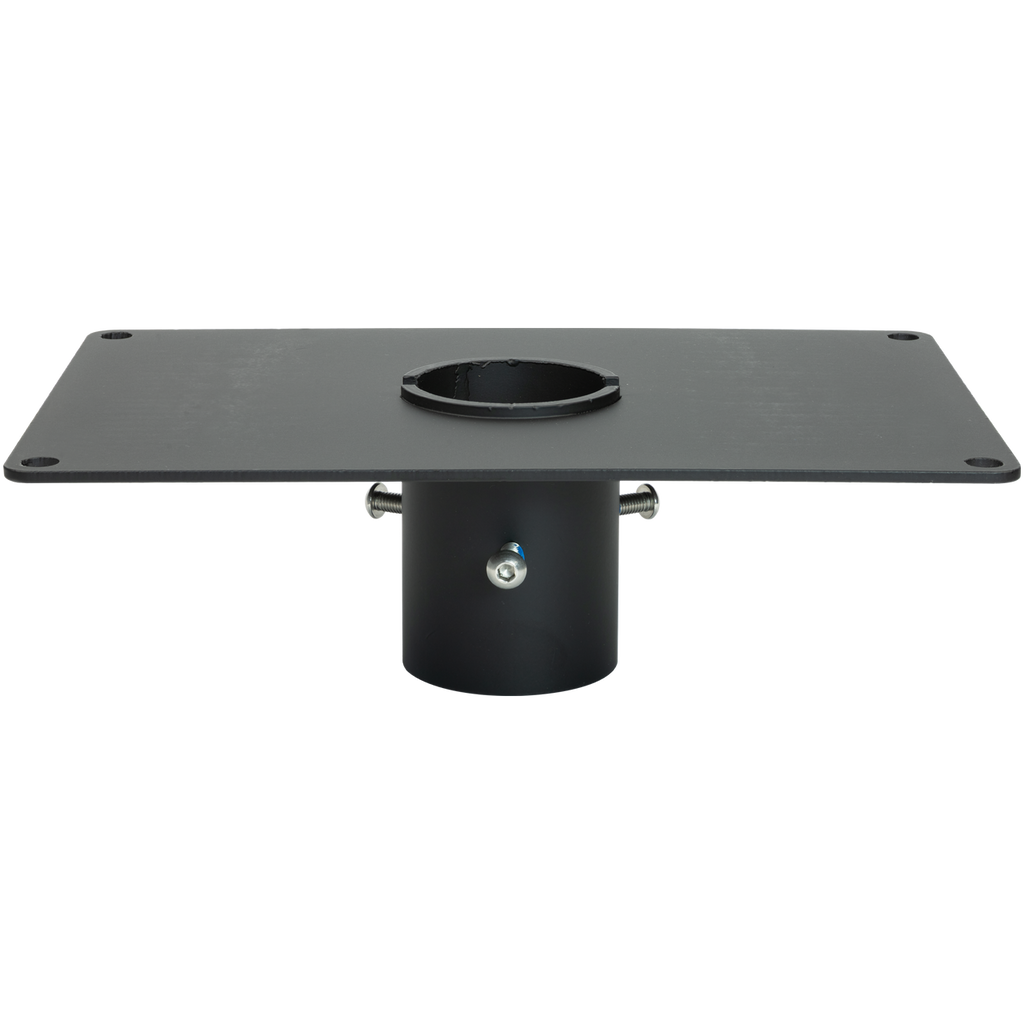

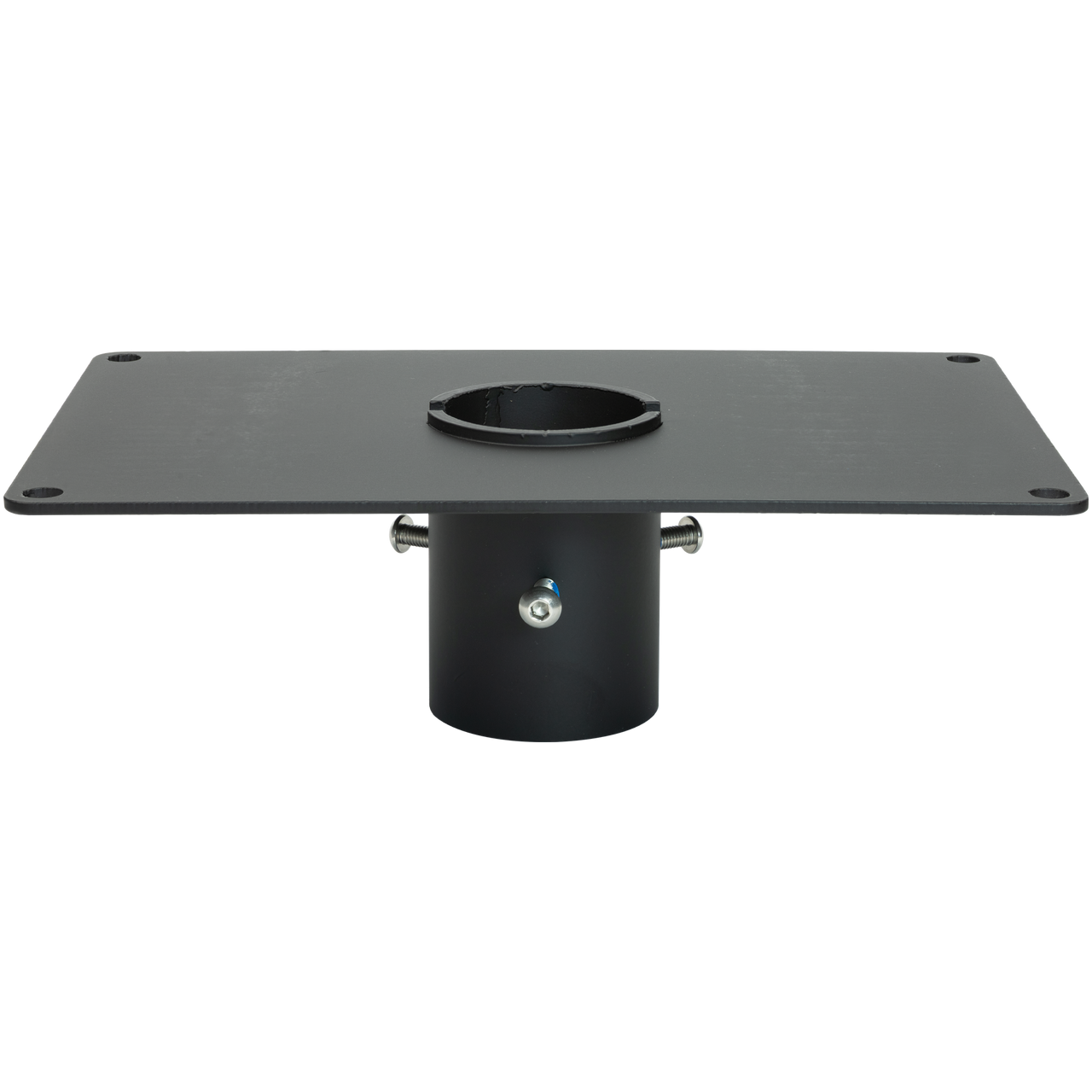

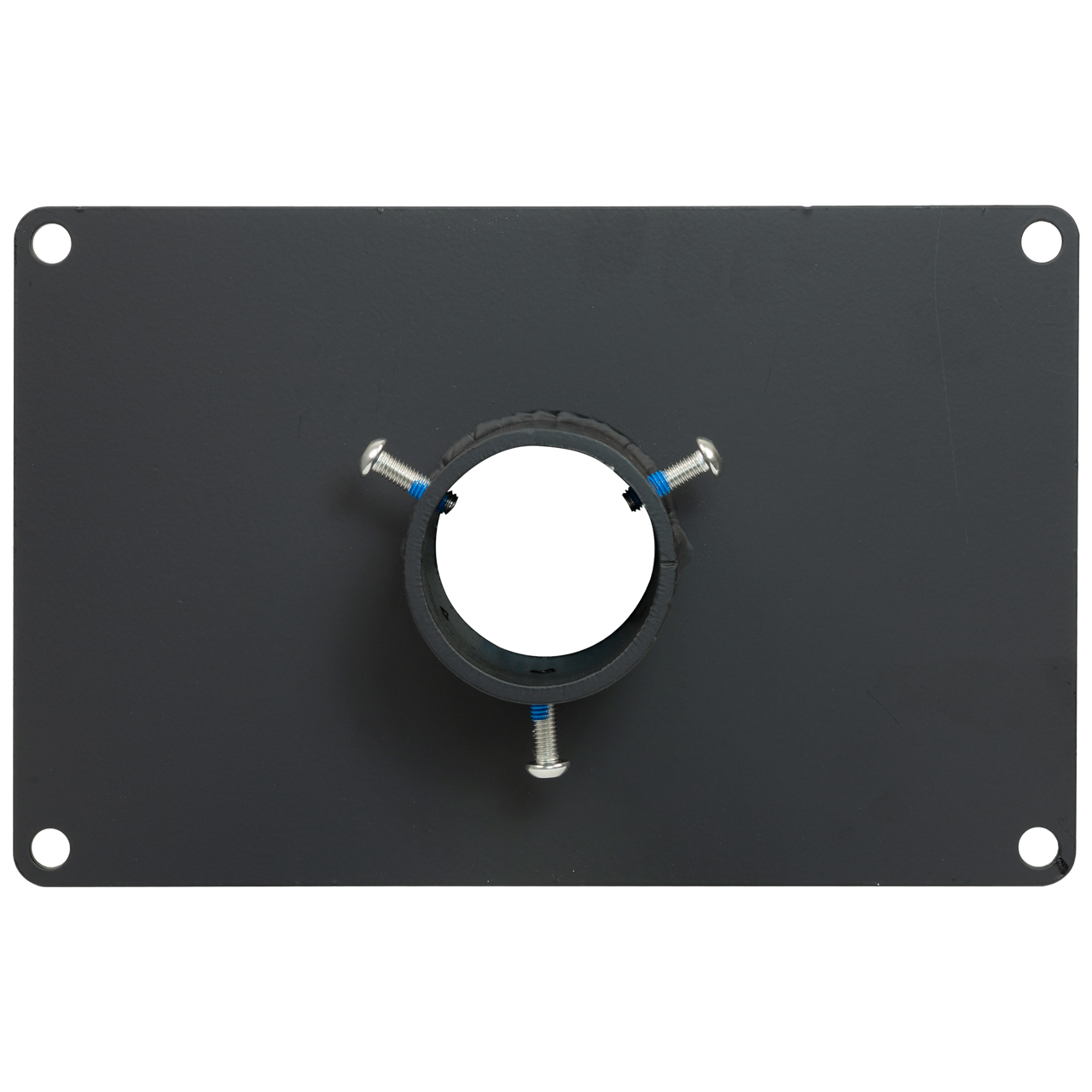

This Hills Antenna Starlink Flat High-Performance Dish Pole Adaptor is designed to fit the standard Wedge Mount supplied with the Starlink Flat High-Performance Kit. It bolts directly to the bottom of the wedge mount and uses three Hexagon Socket Screw to firmly attach to any pole up to 51mm (2 inches) in diameter. It is ideally suited for use with the Hills Antenna range of mounts and masts, which are available in our Starlink Mounts section on our website.

Materials:

The Hills Antenna Starlink Flat High-Performance Dish Pole Adaptor is made from gold zinc-plated steel, which is then matte black powder-coated. This dual coating process helps prevent corrosion and ensures the product remains stable and reliable for long-term use.

Accessories Included:

• 3x M6 x 20mm Hexagon Socket Screws
• 4x M8 x 15mm Bolts
• 4x M8 Nuts
• 1x 4mm x 30mm x 100mm Allen Key

Installation:

The Hills Antenna Starlink Flat High-Performance Dish Pole Adaptor includes all the necessary accessories for mounting to the Starlink Flat High-Perfromance Kit and your chosen pole.

Installing the Hills Antenna Starlink Flat High-Performance Dish Pole Adaptor is a straightforward process.

• Step1: Place the Hills Antenna Starlink Flat High-Performance Dish Pole Adaptor onto the pole of your existing mount.
• Step2: Tighten the provided Hexagon Socket Screws so that the Pole Adaptor is secure but can still rotate on the pole.
• Step3: Attach the Wedge Mount to the Pole Adaptor using 4x M8 Nuts and Bolts, and securely tighten them.
• Step4: Install the Shoulder Bolts to the Starlink Flat High-Performance Dish as shown in the Starlink Setup Guide.
• Step5: Place the Hills Antenna Starlink Flat High-Performance Dish onto the Wedge Mount and secure the Shoulder Bolts as shown in the Starlink Setup Guide.
• Step6: Connect all the necessary cabling.
• Step7: Using the Starlink App, align the Dish in the correct direction and securely tighten the 3 Hexagon Socket Screws.
