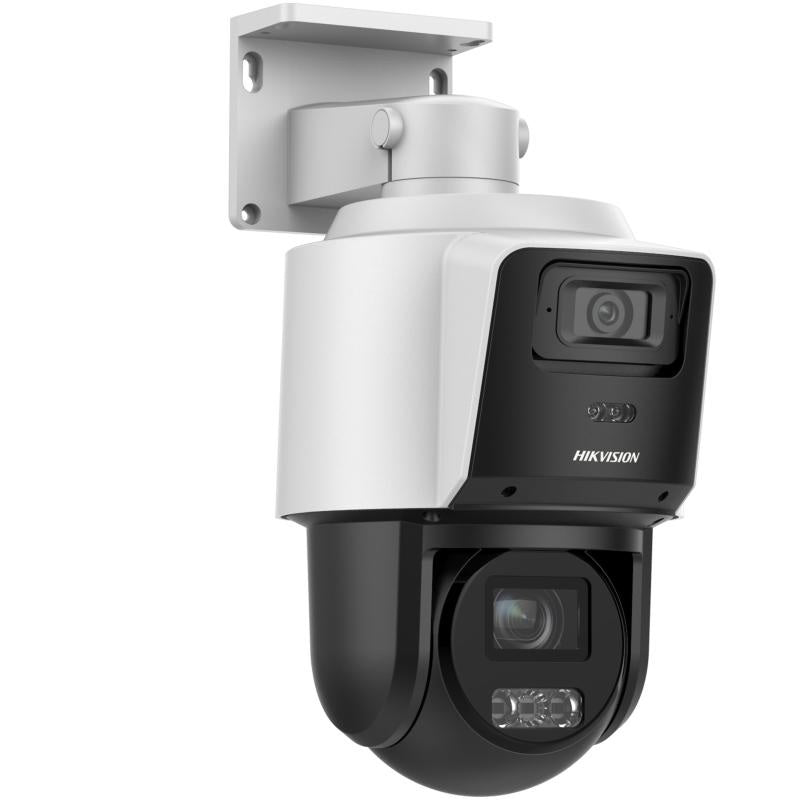

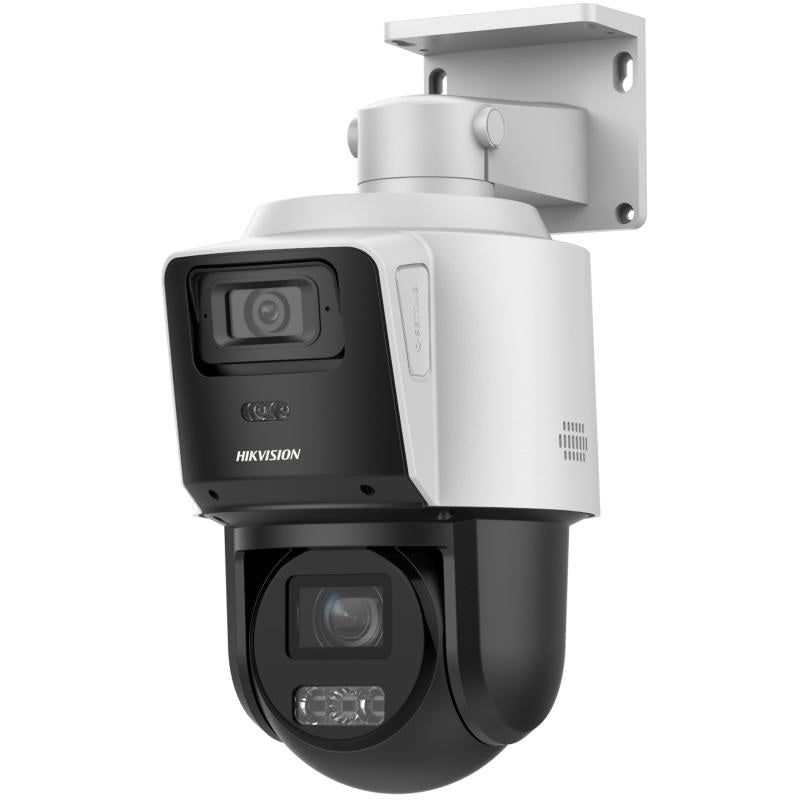

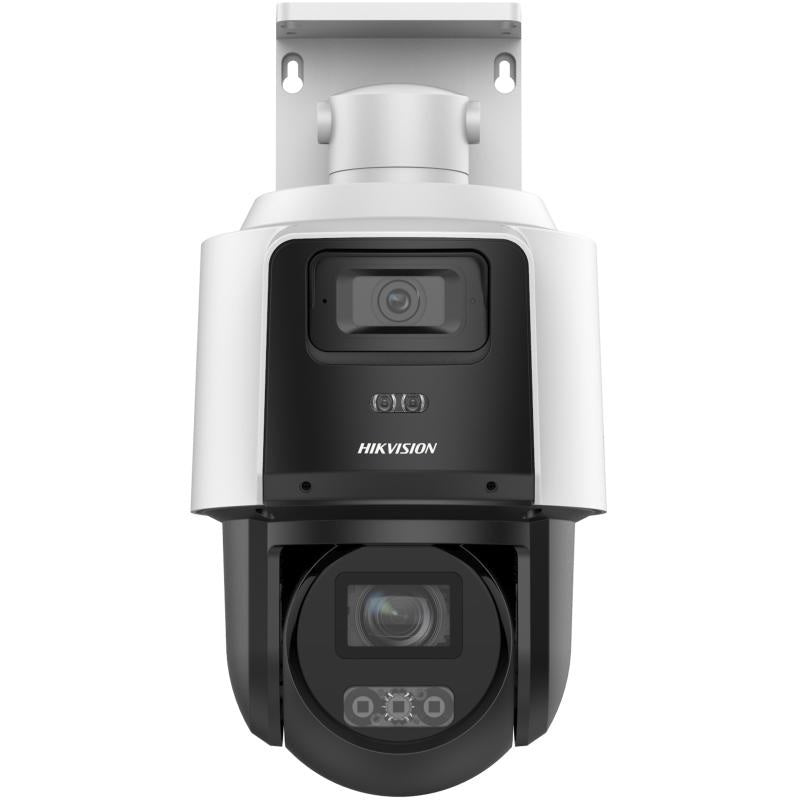

The Hikvision DS-2SE3C404MWG-E/14 TandemVu 4MP+4MP 4X POE PTZ Network Camera integrates a 4-megapixel pan-tilt-zoom (PTZ) camera with a 4-megapixel fixed lens bullet camera, enabling simultaneous wide-area coverage and detailed close-up monitoring. The PTZ camera offers 4× optical zoom and 16× digital zoom, allowing for precise observation of distant subjects, while the bullet camera provides a broad 114.9° horizontal field of view for comprehensive scene overview. Both cameras utilize 1/2.8″ progressive scan CMOS sensors, delivering high-quality imaging at a maximum resolution of 2560 × 1440 pixels.

Equipped with Hikvision’s DarkFighter technology, the camera excels in low-light conditions, capturing color images with minimal illumination—0.01 Lux for the bullet channel and 0.005 Lux for the PTZ channel. Its advanced features include Wide Dynamic Range (WDR), Highlight Compensation (HLC), Backlight Compensation (BLC), 3D Digital Noise Reduction (3D DNR), defog capability, regional exposure, and regional focus, ensuring clear and detailed images in challenging lighting environments. Additionally, the camera supports human and vehicle detection based on deep learning algorithms, enhancing security monitoring efficiency. Power options include 12V DC and PoE+, offering flexible installation choices.

Technical Specifications:

Camera
Image Sensor [Bullet channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
Min. Illumination [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR;
[PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30,000 s
Slow Shutter Yes
Day & Night ICR
Zoom [PTZ channel] 4 × optical, 16 × digital
Max. Resolution [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Focus Auto, Manual, Semi-auto
Focal Length [Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical
Zoom Speed [PTZ channel]: approx. 3.3 s
Field of View (FOV) [Bullet channel] H: 114.9°, V: 62.4°, D: 130.7°;
[PTZ channel] H: 98° to 34.2°, V: 52° to 19.2°, D: 111° to 39°
Aperture [Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9
Supplement Light Type [Bullet channel]: Hybrid (IR and White Light), [PTZ channel]: IR
Smart Supplement Light Yes
Supplement Light Range [PTZ channel]: IR Distance: up to 40 m;
[Bullet channel]: IR: up to 30 m, White Light: 30 m
PTZ Movement Range Pan: 0° to 350°, Tilt: [Bullet channel] 7° to 17° (manual), [PTZ channel] -5° to 90°
Pan/Tilt Speed Pan: 0.1° to 30°/s, Preset: 30°/s
Tilt: 0.1° to 30°/s, Preset: 30°/s
Proportional Pan Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets each
Power-off Memory Yes
Park Action Preset, Patrol scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Dome reboot, preset, patrol scan, dome adjust, aux output
Region of Interest (ROI) 1 fixed region for main stream
Main Stream [Bullet/PTZ] 50 Hz: 25 fps, 60 Hz: 30 fps @ 2560×1440, 1920×1080, 1280×720
Sub-Stream [Bullet/PTZ] 50 Hz: 25 fps, 60 Hz: 30 fps @ 640×480, 640×360
Third Stream [Bullet/PTZ] 50 Hz: 25 fps, 60 Hz: 30 fps @ 1280×720, 640×480, 640×360
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264/H.265 Profiles H.264: Main, Baseline, High
H.265: Main
SVC Yes
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC
Audio Bit Rate MP2L2: 32–160 kbps, AAC: 16–64 kbps, MP3: 8–160 kbps
Audio Sampling Rate MP2L2: 16 kHz, AAC: 16 kHz, PCM: 8/16 kHz, MP3: 8/16 kHz
Environment Noise Filtering Yes
API ONVIF (Profile S/G/T), ISAPI, SDK, ISUP
Network Storage NAS (NFS, SMB/CIFS), ANR
Protocols TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, HTTP, HTTPS, DHCP, DNS, NTP, RTP, SNMP, UDP, ICMP, 802.1X, DDNS, PPPoE, Bonjour, IPv4/IPv6, QoS
Simultaneous Live View 20
User/Host 32
Security 802.1X, MAC binding, Authenticated username/password, IP filter, HTTPS
Client iVMS-4200, Hik-Connect
Web Browser IE8+, Chrome 31–44, Firefox 30–51, Safari 8+
Image Settings Sharpness, Saturation, Brightness, Contrast
WDR 120 dB
SNR ≥ 52 dB
Defog Digital
Day/Night Switch Day, Night, Auto, Scheduled
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask [Bullet/PTZ] 24 programmable polygon masks
Regional Focus/Exposure [Bullet] No, [PTZ] Yes
Image Parameters Switch Yes
Ethernet Interface RJ45, 10M/100M self-adaptive
On-board Storage Micro SD/SDHC/SDXC, up to 512 GB
Reset Yes
Basic Events Motion detection, tampering, exception, I/O alarms
Smart Events Line crossing, intrusion, region entrance/exit, audio exception
Linkage [Bullet/PTZ]: Upload to FTP/NAS/SD, notify center, email, I/O, recording, [PTZ]: PTZ actions
General Functions Mirror, Watermark, IP filter, Password protection
Power 12 VDC, PoE+
Operating Condition -30°C to 50°C (-22°F to 122°F), 95% RH or less
Demist Heated glass
Material PC
Dimensions 311.5 mm × 223.5 mm × 156 mm (12.26″ × 8.80″ × 6.14″)
Weight Approx. 1.37 kg (3.02 lb.)
Protection IP66, Surge and Voltage Transient Protection
